In modern industrial piping systems, Weld Neck Flanges (WN Flanges) are key to ensuring leak-proof, high-integrity connections — especially in high-pressure, high-temperature environments. At Omaa Metal Sources, a trusted name in forged components and pipe fittings, we don’t just forge with precision — we empower our clients with knowledge. One of the most important aspects to understand when selecting flanges is the pipe schedule (SCH).

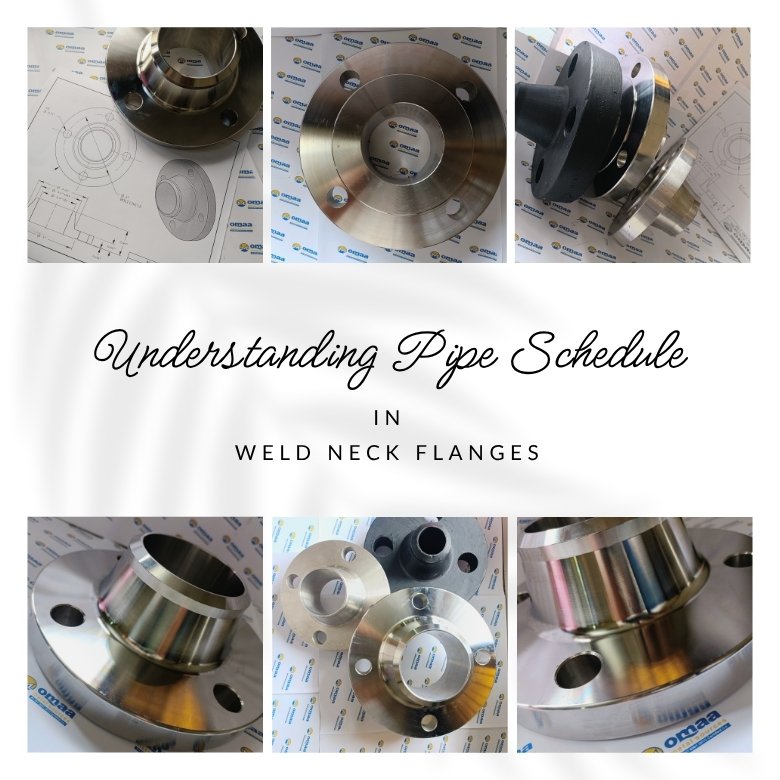

What is Pipe Schedule (SCH)?
Pipe Schedule (SCH) refers to the wall thickness of a pipe, which directly impacts the pressure rating, mechanical strength, and compatibility with flanges.
Pipe schedules are defined by international standards:
- ASME B36.10 – for carbon steel pipes
- ASME B36.19 – for stainless steel pipes
Common Pipe Schedules:
- SCH 10 – Thin wall, low-pressure use
- SCH 20 – Slightly thicker, medium-pressure systems
- SCH 40 – Standard wall, widely used across industries
- SCH 80 – Extra strong, suitable for higher pressure
- SCH 160 – Heavy wall, used in extreme-pressure applications
Higher the schedule, thicker the wall — and stronger the pressure resistance.
Why Schedule (SCH) Matters in Weld Neck Flanges
Weld Neck Flanges are designed for butt-welding to the pipe. For a perfect weld and uninterrupted flow, the flange bore must match the pipe’s schedule. This is more than a fitment concern — it’s a matter of system integrity and safety.
Key Reasons SCH Matching is Critical:
- Pressure Integrity: An SCH mismatch creates weak points, risking leaks or catastrophic failure.
- Flow Efficiency: Matching schedules avoid steps or discontinuities in the flow path, reducing turbulence and energy loss.
- Welding Precision: Accurate matching ensures clean welds without excess material or undercuts.
- Corrosion Performance: Correct wall thickness improves resistance to erosion and corrosion — especially vital in oil, gas, and chemical media.
Schedule vs. Flange Bore – Why Dimension Accuracy is Key
While outer dimensions of flanges are standardized, the bore size varies with SCH.
For example:
- A 6” SCH 40 flange has a different bore than a 6” SCH 80 flange — despite having the same outer diameter.
That’s why it’s critical to specify:
- Nominal Pipe Size (NPS)
- Required Schedule (SCH)
To avoid costly errors during assembly and welding.
OMAA Metal Sources – Forged to Match Every Schedule
At OMAA Metal, we offer precision-engineered weld neck flanges in all major pipe schedules — from SCH 10 to SCH 160, and even custom wall thicknesses.
We specialize in:
- Forged Carbon Steel Flanges
- Stainless Steel Flanges (304, 316, etc.)
- Alloy Steel & High Nickel Alloy Flanges
Our flanges serve demanding applications in:
- Oil & Gas Pipelines
- Petrochemical Facilities
- Power & Energy Plants
- Water Desalination & Process Industries
Backed by rigorous testing for dimensional accuracy, pressure performance, and material traceability, OMAA’s flanges are trusted across India, the USA, UAE, and beyond.
Final Thoughts: Choose the Right SCH, Choose OMAA
Choosing the correct pipe schedule in weld neck flanges is not a formality — it’s a technical necessity that impacts every aspect of system performance, from flow to pressure, from safety to lifespan.
At OMAA Metal Sources, we ensure every flange we forge is a perfect fit — dimensionally and functionally.
Need guidance on selecting the right flange schedule or looking for custom-forged solutions?
Get in touch with our experts at sales@omaaforged.com | www.omaaforged.com
OMAA Metal Sources – Where Forging Meets Precision.
