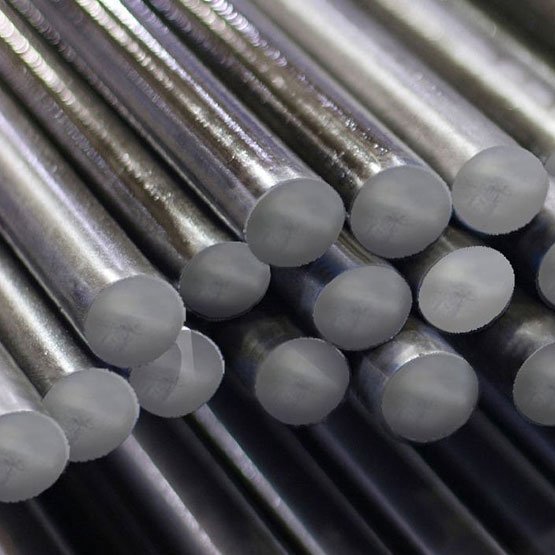

Monel 400 Round Bars, ASTM B164 Alloy 400 Round Rod

Name: Omaa Forged - Industrial Flanges and Round Bars
Rating: 5

400 Monel Bright Bars Supplier, Monel® Alloy 400 Bar, Monel Alloy 400 Round Bars, Monel 400 Round Bar, 2.4360 Rods, UNS N04400 Bars, ASTM B164 Monel 400 Round Bars Manufacturer in India.

Monel 400 is a nickel-copper alloy that is known for its excellent resistance to corrosion in various environments. Monel 400 round bars are cylindrical bars made from this alloy and are used in a variety of applications, including marine and chemical processing.

Monel 400 round bars have a high strength and excellent ductility, making them ideal for use in high-stress applications. They are also resistant to high-temperature environments and have good mechanical properties at both room temperature and elevated temperatures.

Specifications Material Grades Dimensions Weight Chart Size Chart Hex Bar Sizes Chart Applications

Buy Monel 400 Round Bar, Check Sizes And Dimensions Of 400 Monel Round Bars, Ready Stock of Monel 400 Round Rods, JIS NW 4400 Round Bars, Monel N04400 Round Bars, Nickel Alloy 400 Cold Drawn Round Bar, 400 Monel Round Bar, Suppliers of 400 Monel Round Bars.

Monel 400 round bars come in various sizes and lengths, and they can be custom-made to meet specific application requirements. They are commonly used in the manufacture of valves, pumps, heat exchangers, and other components in the chemical processing industry.

When purchasing Monel 400 round bars, it is important to ensure that they meet the relevant industry standards and specifications. The bars should be inspected for any defects, such as cracks or surface imperfections, before use to ensure that they meet the required quality standards.

DETAILED INFORMATION

Q: What is Monel 400?

A: Monel 400 is a nickel-copper alloy known for its exceptional resistance to corrosion, particularly in a wide range of acidic and alkaline environments. It offers high strength and excellent mechanical properties even at elevated temperatures.

Q: What is a Monel 400 Round Bar?

A: A Monel 400 Round Bar is a cylindrical metal rod made from Monel 400 alloy. It has a circular cross-section and is commonly used in various industries for applications that require corrosion resistance, strength, and durability.

Q: What are the advantages of using Monel 400 Round Bars?

A: Monel 400 Round Bars offer several advantages, including:

– Excellent resistance to corrosion in various environments, such as seawater, hydrofluoric acid, sulfuric acid, and alkaline solutions.
– High strength and toughness, making it suitable for demanding applications.
– Good thermal conductivity and low coefficient of thermal expansion.
– Resistance to stress corrosion cracking.
– Easy to machine and weld.

Q: What industries use Monel 400 Round Bars?

A: Monel 400 Round Bars find applications in a wide range of industries, including: – Marine and offshore industries: Due to its resistance to seawater and brine, Monel 400 is commonly used in marine equipment, seawater valves, and propeller shafts.

– Chemical processing: Monel 400 Round Bars are used in equipment such as pumps, valves, heat exchangers, and reactors that handle corrosive chemicals.
– Oil and gas industry: It is used in downhole and surface equipment, valves, and instrumentation.
– Aerospace industry: Monel 400 Round Bars can be found in aircraft fuel tanks and components, as well as in aerospace engine parts.
– Electrical industry: Monel 400 is used for electrical and electronic components due to its excellent conductivity and resistance to corrosion.

Q: What sizes are available for Monel 400 Round Bars?

A: Monel 400 Round Bars are available in various sizes, typically ranging from 6 mm to 300 mm in diameter. The length can vary based on the manufacturer and customer requirements.

Q: What are the specifications or standards for Monel 400 Round Bars?

A: Monel 400 Round Bars adhere to various specifications and standards such as ASTM B164, AMS 4675, and UNS N04400.

Q: Can Monel 400 Round Bars be customized?

A: Yes, Monel 400 Round Bars can be customized to meet specific requirements. Omaa Metal Sources can provide custom sizes, lengths, and even specific machining or surface finish options based on customer needs.

Q: Is it possible to get a sample of Monel 400 Round Bar before placing a bulk order?

A: Some suppliers may offer samples of Monel 400 Round Bars for evaluation purposes. Contact the supplier or manufacturer to inquire about their sample policy and any associated costs.

Q: What precautions should be taken when handling Monel 400 Round Bars?

A: When handling Monel 400 Round Bars, it is generally advisable to wear protective gloves and eye protection. While Monel 400 is considered safe, like any metal, sharp edges or flying debris from machining should be avoided. Additionally, follow proper storage guidelines to prevent damage or contamination.

Monel 400 Round Bars Specifications

Size Range

12 mm - 46 mm (1/2 inch- 1 ¾ inch)

Length

1 to 6 Meters, Custom Cut Lengths

Standards / Dimensions

EN, DIN, JIS, ASTM, BS, ASME, AISI

ASTM B164/ ASME SB164

Finish

Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish

Form

Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc.

ASTM B164 Monel 400 Round Bars Equivalent Grade

STANDARD	WERKSTOFF NR.	UNS	GOST	AFNOR	JIS	BS	EN
Monel 400	2.4360	N04400	МНЖМц 28-2,5-1,5	NU-30M	NW 4400	NA 13	NiCu30Fe

Monel Alloy 400 Round Bars Chemical Composition

Grade	Ni	Fe	C	Mn	Si	Cu	Al	S
Monel 400	63.0 min	1.0 – 2.5	0.3 max	2.0 max	0.5 max	28.0 – 34.0	0.50 max	0.02 max

ASTM B164 Monel 400 Round Bars Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.8 g/cm3	1350 °C (2460 °F)	Psi – 80000 , MPa – 550	Psi – 35000 , MPa – 240	40 %

Find the largest ready stock of Monel 400 Threaded bar, 400 Monel Round Bar Price List, Alloy 400 Square bar Supplier, Check Availability of 400 Monel Flat bar, Monel Alloy 400 Bright bar Stockist, 400 Monel Rectangular Bars Dimension, Monel 400 Hot Rolled Bar Exporter, Competitive Price of Monel 400 Hollow Bars, 400 Monel Round Bars in Mumbai, India.

400 Monel Round Bar Dimensions

Diameter or Width (mm)	Weight per meter		Sectional Area		Perimeter
Diameter or Width (mm)	Square (kg)	Round (kg)	Square (cm²)	Round (cm²)	Square (cm)	Round (cm)
5.0	0.20	0.15	0.25	0.20	2.0	1.57
5.5	0.24	0.19	0.30	0.24	2.2	1.78
6.0	0.28	0.22	0.36	0.28	2.4	1.88
7.0	0.38	0.30	0.49	0.38	2.8	2.20
8.0	0.50	0.39	0.64	0.50	3.2	2.51
9.0	0.64	0.50	0.81	0.64	3.6	2.83
10	0.73	0.63	1.00	0.79	4.0	3.14
11	0.95	0.75	1.21	0.95	4.4	3.46
12	1.13	0.89	1.44	1.13	4.8	3.77
14	1.54	1.21	1.96	1.54	5.6	4.40
16	2.01	1.58	2.56	2.01	6.4	5.03
18	2.54	2.00	3.24	2.54	7.2	5.65
20	3.14	2.47	4.00	3.14	8.0	6.28
22	3.80	2.98	4.84	3.80	8.8	6.91
25	4.91	3.85	6.25	4.91	10.0	7.85
28	6.15	4.83	7.84	6.16	11.2	8.80
32	8.04	6.31	10.24	8.04	12.8	10.05
36	10.17	7.99	12.96	10.18	14.4	11.31
40	12.56	9.86	16.00	12.57	16.0	12.57
45	15.90	12.49	20.25	15.90	18.0	14.14
50	19.62	15.41	25.00	19.64	20.0	15.71
56	24.62	19.34	31.36	24.63	22.4	17.59
63	31.16	24.47	36.69	31.17	25.2	19.79
71	39.57	31.08	50.41	39.59	28.4	22.31
80	50.24	39.46	64.00	50.27	32.0	25.13

Monel 400 Hot Rolled Bar Weight Chart

Diameter	Weight Chart	Dia	Weight Chart
(mm)	per metre (kg)	(in)	per metre (kg)
3mm	0.06	1/8″	0.06
4mm	0.10	3/16″	0.14
5mm	0.16	1/4″	0.25
6mm	0.22	5/16″	0.39
7mm	0.30	3/8″	0.56
8mm	0.40	7/16″	0.77
10mm	0.62	1/2″	1.00
12mm	0.89	9/16″	1.22
14mm	1.22	5/8″	1.56
15mm	1.40	11/16″	1.89
16mm	1.59	3/4″	2.25
18mm	2.01	7/8″	3.07
20mm	2.48	1″	4.03
22mm	3.00
24mm	3.57
25mm	3.88

Monel 400 Round Bar Size Chart

Diameter	Diameter
(in)	(mm)
1/8″	3mm
3/16″	4mm
1/4″	5mm
5/16″	6mm
3/8″	7mm
7/16″	8mm
1/2″	10mm
5/8″	12mm
3/4″	14mm
7/8″	15mm
1"	16mm
1.1/8″	20mm
1.1/4″	22mm
1.3/8″	25mm
1.1/2″	30mm
1.5/8″	32mm
1.3/4″	35mm
1.7/8″	40mm
2"	45mm
2.1/8″	50mm
2.1/4″	55mm
2.3/8″	60mm
2.1/2″	65mm
2.3/4″	70mm
3″	75mm
	80mm

Monel Alloy 400 Square Bar Surface finish

CD	Cold drawn	P	Polished
BD	Bright drawn	SRE	Slit rolled edge
CG	Centreless ground	HF	Hot finished
CF	Cold finished	HRAP	Hot rolled annealed and pickled
P&T	Peeled and turned	RT	Rough turned/peeled
ST	Smooth turned	PR	Peeled and reeled

Monel 400 Hex Bar Sizes

Size (mm)	Weight (kg/m)	Size (mm)	Weight (kg/m)	Size (mm)	Weight (kg/m)
7 x 7	0.337	19 x 19	2.479	38 x 38	9.916
8 x 8	0.44	20 x 20	2.747	40 x 40	10.988
9 x 9	0.556	21 x 21	3.029	42 x 42	12.114
10 x 10	0.687	22 x 22	3.324	45 x 45	13.906
11 x 11	0.831	24 x 24	3.956	48 x 48	15.822
12 x 12	0.989	25 x 25	4.292	50 x 50	17.168
13 x 13	1.161	26 x 26	4.642	53 x 53	19.29
14 x 14	1.346	28 x 28	5.384	55 x 55	20.774
15 x 15	1.545	30 x 30	6.181	60 x 60	24.723
16 x 16	1.758	32 x 32	7.032	65 x 65	29.015
17 x 17	1.985	34 x 34	7.939	70 x 70	33.65
18 x 18	2.225	36 x 36	8.9	75 x 75	38.629

Best quality Monel 400 Forged Bar, 400 Monel Bright Bar, 400 Square Bars, Monel Alloy Grade 400 Rectangular Bar, 400 Monel Cold Rolled Bar, Monel 400 Flat Bar, View Specification Of Monel 400 Half-Round Bar, Alloy 400 Round Bars, Monel 400 Round Bars Price, 400 Monel Hollow Bar, Monel 400 Rods, Monel Alloy 400 Precision Ground Bar, Monel 400 Round Bar at Best Price.

ASTM B164 Monel 400 Round Bar Applications
