A swivel ring flange, also known as a rotating flange, is a type of pipe flange used in piping systems to allow easy alignment and installation of pipelines.
The swivel ring flange consists of three main components: the flange, the swivel ring, and the gasket. The flange is typically made of carbon steel or stainless steel and is used to connect the piping system to other equipment or pipelines. The swivel ring is a separate ring that is mounted on the flange, and it is able to rotate 360 degrees. The gasket is placed between the flange and the swivel ring to create a tight seal.
The advantage of a swivel ring flange is that it allows the flange to rotate freely, which makes it easier to align the bolt holes of the flange with those of the adjoining equipment or pipeline. This can save time and effort during installation, especially in situations where the alignment of the piping system is critical. Swivel ring flanges are commonly used in offshore oil and gas installations, as well as in industrial plants and power generation facilities.
ASTM A105 Swivel Ring Flange, Carbon Steel Swivel Ring Flanges, Rotating Flange, Inconel 600 Swivel Ring Flange, MSS SP-44 Swivel Ring Flange, Titanium Swivel Ring Flanges, EN 1092-2 PN16 Swivel Ring Flanges Exporter, Swivel Ring Flanges NPS, Sch 80 Schedule 40 Stainless Steel 304, 304L, 316, 316L, and 904L Swivel Ring Flange, Series A & B Swivel Ring Flanges, DIN 86029 PN10 Rotating Flange, Swivel Ring Forged Flange, MS Swivel Ring Flange at the Lowest Prices.
Swivel Ring Flange Specifications
Size Range
1/2″ (15 NB) to 48″ (1200NB)
Class / Pressure Rating
150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
Standards / Dimensions
ANSI/ASME B16.5, B16.47 Series A & B, B16.48, JIS B2220, BS 4504, BS 10, BS1560-3.1, EN-1092, DIN, AS, GOST, MSS SP-44, ISO 70051, API7S-15, API7S-43, API605, AWWA, DIN
Connection Type
Ring Joint Flange (RTJ), Flat Face Flange (FF), Raised Face Flange (RF), Male and Female Flange (M & F), Lap Joint Flange, Large and Small Tongue-and-Groove Flange (T & G)
Material Standards
ASTM A105, ASTM A350, ASTM A182, ASTM A216, ASTM A352, ASTM A217, ASTM A515, ASTM A516, ASTM A203, A204, ASTM A387, ASTM A240, ASTM A694 Swivel Ring Flange
Swivel Ring Flange Materials & Grades
| ASTM A182 Swivel Ring Flange |
|---|
| Stainless Steel 304, 304L, 316, 316L, 316H, 316Ti, 310, 310S, 317, 317L, 321, 347, 347H, 904L, SMO 254/6Mo, Duplex Steel-S31803/S32205, Super Duplex-S32750/S32760 F51, F52, F53, F54, F55, F57, F59, F60, F61, Alloy Steel F1, F5, F9, F11, F12, F22, F91 |
| ASTM B564 Swivel Ring Flange |
|---|
| Incoloy 800, 800H, 800HT, 825, 925, Inconel 600, 601, 625, 718, 783, 690, X750, Nickel 200, 201, 205, 205LC, Hastelloy C276, C22, C4, C2000, B2, B3, X, Monel 400, 500 |
| ASTM A105 / A105N / A350 LF2 / A694 Swivel Ring Flange |
|---|
| Carbon Steel F52, F56, F60, F65, F70, F80 |
| ASTM B247 Swivel Ring Flange |
|---|
| Aluminium 7075, 5086, 6082, 3003, 5083, 6061, 1100 |
| ASTM B61 / B62 / B151 / B152 Swivel Ring Flange |
|---|
| Copper Nickel 90/10 (C70600 ), 70/30 (C71500), UNS C71640 |
| ASTM B381 Swivel Ring Flange |
|---|
| Titanium Grade 1, Grade 2, Grade 3, Grade 4, Grade 5, Grade 6, Grade 7, Grade 9, Grade 12 |
Find the largest ready stock of Swivel Ring Flange, ASME B16.47/ANSI B16.5 Swivel Ring Flange, Series A & B Swivel Ring Flange Manufacturers, EN 1092-1 Swivel Ring Flange, Class 300, 600, 900, 1500 Swivel Ring Flange Manufacturer, PN10 Swivel Ring Flange, Pn6, Pn10, Pn16, Pn25, Pn40, Swivel Ring Flange Pn40, Din 2633 Rotating Flange, Asme B16.5 Class 300, Swivel Ring Flange, ANSI B16.48 Class 150 rotating Flange, ANSI B16.5 Class 150 BS-4504 Swivel Ring Flange, ANSI 16.5 Swivel Ring Flange in Mumbai, India.

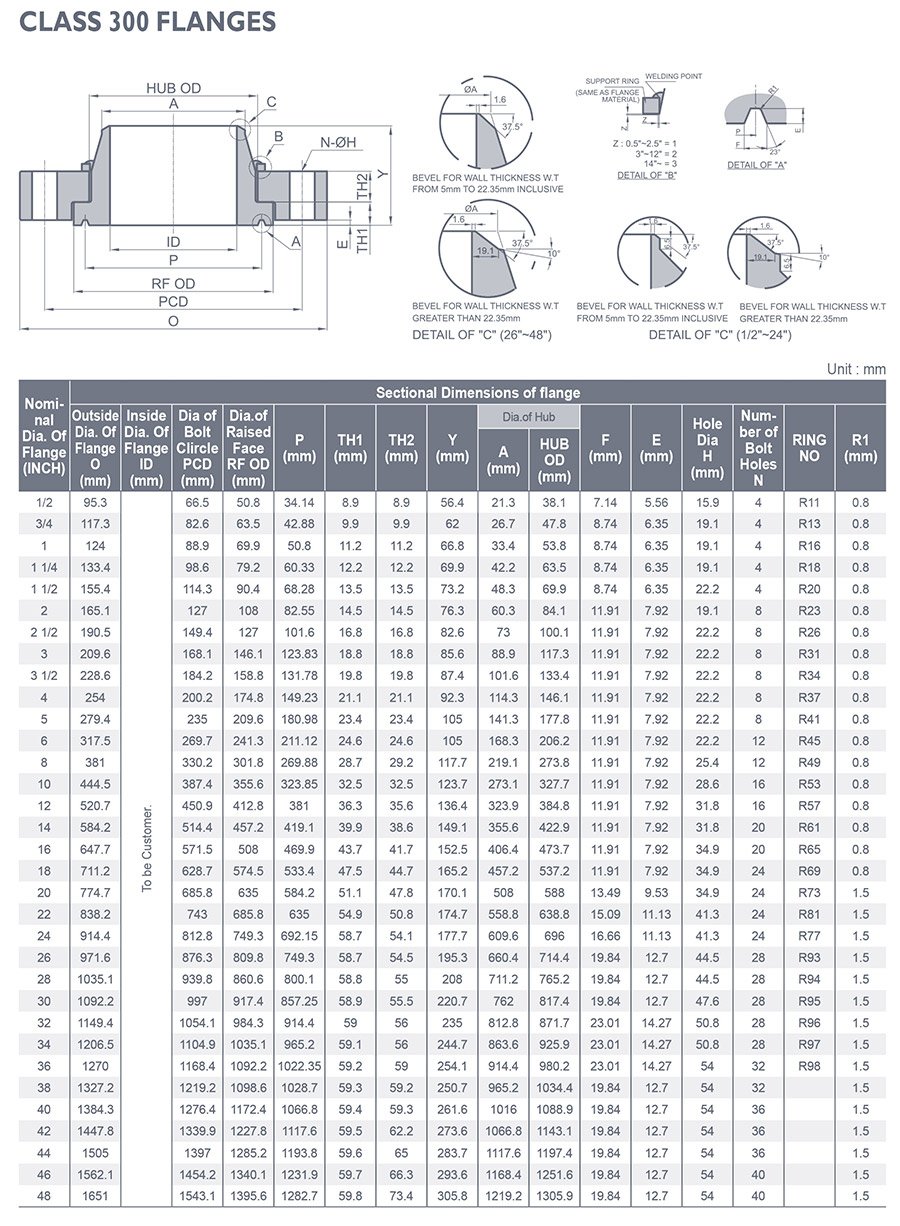

ANSI/ASME B16.5 Swivel Ring Flange Class 300 Dimensions
Note: Here NPS is Nominal Pipe Size, D is Outside Diameter, D1 is Bolt Circle Diameter, D2 is Inside Diameter, H is Height/Thickness, T is Flange Thickness, and B is Hub Diameter at Base.
| NPS | D | D1 | D2 | H | T | B | g | No. of Bolts | Bolt Size | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 90 | 34 | 21 | 20 | 11 | 50 | 5 | 4 | 1/2 | 2.0 |
| 3/4 | 100 | 42 | 27 | 20 | 13 | 50 | 5 | 4 | 1/2 | 2.5 |
| 1 | 110 | 50 | 33 | 20 | 13 | 50 | 5 | 4 | 1/2 | 3.0 |
| 1.5 | 125 | 66 | 48 | 20 | 14 | 50 | 5 | 4 | 1/2 | 3.5 |
| 2 | 150 | 80 | 61 | 20 | 16 | 50 | 5 | 8 | 5/8 | 4.0 |

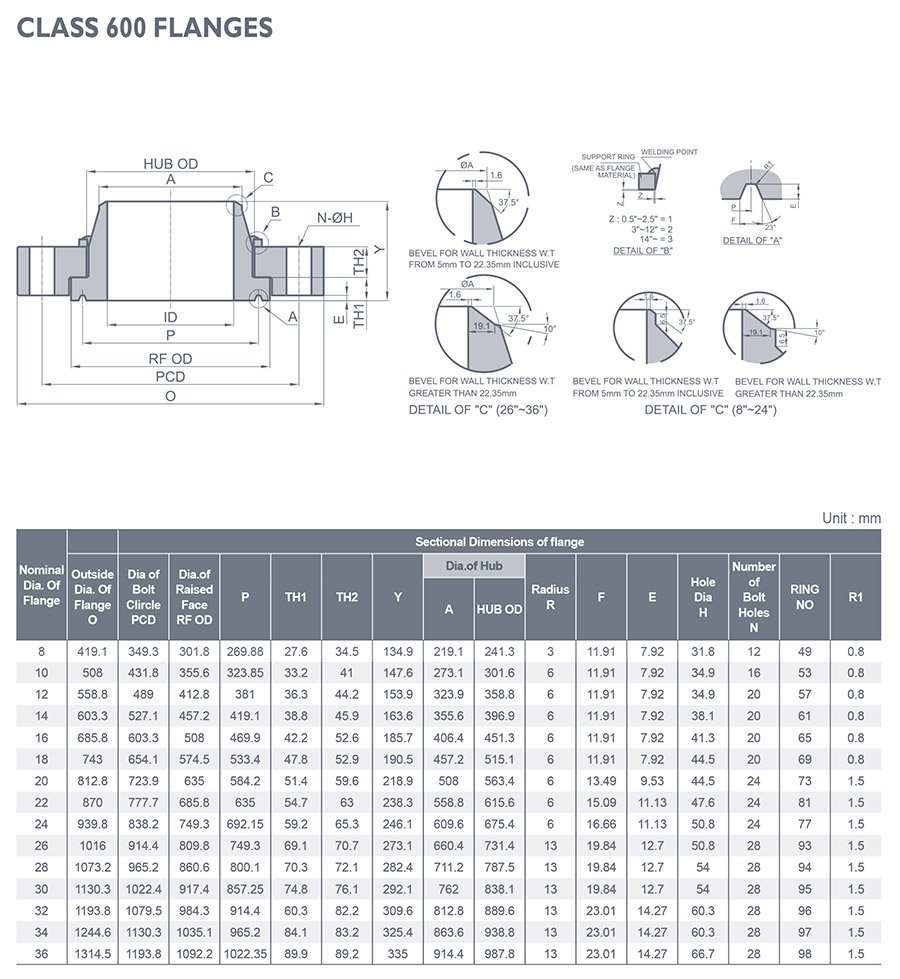

ANSI/ASME B16.5 Swivel Ring Class 600 Dimensions
| NPS | D | D1 | D2 | H | T | B | g | No. of Bolts | Bolt Size | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 95 | 38 | 21 | 30 | 15 | 70 | 6 | 4 | 1/2 | 3.0 |
| 3/4 | 110 | 45 | 27 | 30 | 17 | 70 | 6 | 4 | 1/2 | 3.5 |
| 1 | 120 | 52 | 33 | 30 | 18 | 70 | 6 | 4 | 1/2 | 4.0 |
| 1.5 | 135 | 68 | 48 | 30 | 19 | 70 | 6 | 4 | 1/2 | 4.5 |
| 2 | 155 | 85 | 61 | 30 | 21 | 70 | 6 | 8 | 5/8 | 5.0 |
ANSI/ASME B16.5 Swivel Ring Flange Class 900 Dimensions
| NPS | D | D1 | D2 | H | T | B | g | No. of Bolts | Bolt Size | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 105 | 40 | 21 | 35 | 20 | 80 | 7 | 4 | 1/2 | 3.5 |
| 3/4 | 115 | 50 | 27 | 35 | 22 | 80 | 7 | 4 | 1/2 | 4.0 |
| 1 | 125 | 58 | 33 | 35 | 23 | 80 | 7 | 4 | 1/2 | 4.5 |
| 1.5 | 140 | 75 | 48 | 35 | 25 | 80 | 7 | 4 | 1/2 | 5.0 |
| 2 | 165 | 92 | 61 | 35 | 27 | 80 | 7 | 8 | 5/8 | 5.5 |

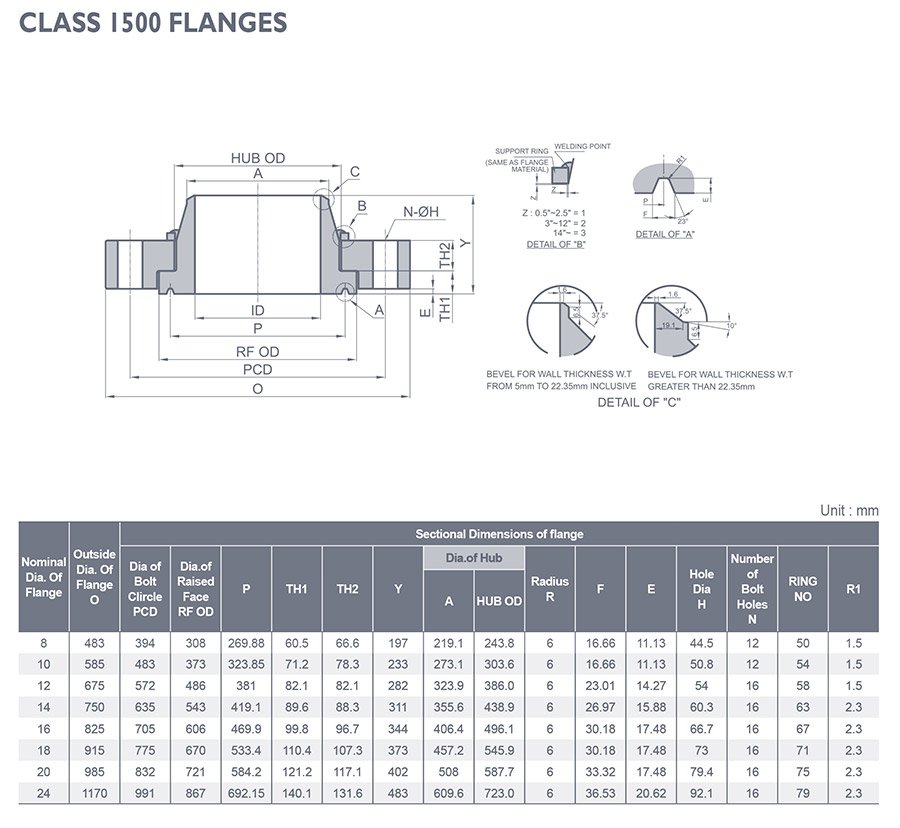

ANSI/ASME B16.5 Swivel Ring Flange Class 1500 Dimensions
