A wire seal flange is a type of sealing device used in industrial applications to prevent leakage of fluids or gases between two surfaces that are joined together. The wire seal flange consists of a flange and a wire seal that is designed to fit into a groove on the flange. The wire seal is typically made of a high-strength material, such as stainless steel, and is compressed between the flange and the surface being sealed, creating a tight seal.
Wire seal flanges are commonly used in applications where high pressure or vacuum conditions are present, such as in the oil and gas industry, chemical processing plants, and aerospace industry. They are designed to withstand extreme temperatures and pressures, and are often used in conjunction with other sealing devices, such as gaskets, to provide maximum sealing performance.
One advantage of wire seal flanges is that they can be reused multiple times, making them a cost-effective sealing solution. They also provide a secure and reliable seal that is resistant to vibration and thermal cycling. However, they require careful installation and torque control to ensure proper sealing and avoid damaging the wire seal or flange surfaces.
ASTM A105 Wire Seal Flange, Carbon Steel Wire Seal Flanges, Wire Seal Flange Exporter, Inconel 600 Wire Seal Flange, MSS SP-44 Wire Seal Flange, Titanium Wire Seal Flanges, EN 1092-2 PN16 Wire Seal Flanges Exporter, Sch 80 Schedule 40 Stainless Steel 304, 304L, 316, 316L, and 904L Wire Seal Flange, Series A & B Wire Seal Flanges, DIN 86029 PN10 Wire Seal Flange, Wire Seal Forged Flange, Nickel Alloy Wire Seal Flange, Alloy 20 Wire Seal Flange, SMO 254 Wire Seal Flange at the Lowest Prices.
Wire Seal Flange Specifications
Size Range
Nominal OD Sizes:
12-3/8 – 27-1/8 inches
Tube Sizes:
10 to 24 inches
Class / Pressure Rating
150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
Standards / Dimensions
ANSI/ASME B16.5, B16.47 Series A & B, B16.48, JIS B2220, BS 4504, BS 10, BS1560-3.1, EN-1092, DIN, AS, GOST, MSS SP-44, ISO 70051, API7S-15, API7S-43, API605, AWWA, DIN
Connection Type
Ring Joint Flange (RTJ), Flat Face Flange (FF), Raised Face Flange (RF), Male and Female Flange (M & F), Lap Joint Flange, Large and Small Tongue-and-Groove Flange (T & G)
Material Standards
ASTM A105, ASTM A350, ASTM A182, ASTM A216, ASTM A352, ASTM A217, ASTM A515, ASTM A516, ASTM A203, A204, ASTM A387, ASTM A240, ASTM A694 Wire Seal Flange
ANSI/ASME 16.5 Wire Seal Flange Materials & Grades
| ASTM A182 Wire Seal Flange |
|---|
| Stainless Steel 304, 304L, 316, 316L, 316H, 316Ti, 310, 310S, 317, 317L, 321, 347, 347H, 904L, SMO 254/6Mo, Duplex Steel-S31803/S32205, Super Duplex-S32750/S32760 F51, F52, F53, F54, F55, F57, F59, F60, F61, Alloy Steel F1, F5, F9, F11, F12, F22, F91 |
| ASTM B564 Wire Seal Flange |
|---|
| Incoloy 800, 800H, 800HT, 825, 925, Inconel 600, 601, 625, 718, 783, 690, X750, Nickel 200, 201, 205, 205LC, Hastelloy C276, C22, C4, C2000, B2, B3, X, Monel 400, 500 |
| ASTM A105 / A105N / A350 LF2 / A694 Wire Seal Flange |
|---|
| Carbon Steel F52, F56, F60, F65, F70, F80 |
| ASTM B247 Wire Seal Flange |
|---|
| Aluminium 7075, 5086, 6082, 3003, 5083, 6061, 1100 |
| ASTM B61 / B62 / B151 / B152 Wire Seal Flange |
|---|
| Copper Nickel 90/10 (C70600 ), 70/30 (C71500), UNS C71640 |
| ASTM B381 Wire Seal Flange |
|---|
| Titanium Grade 1, Grade 2, Grade 3, Grade 4, Grade 5, Grade 6, Grade 7, Grade 9, Grade 12 |
ANSI/ASME B16.5 Wire Seal Flanges Dimensions

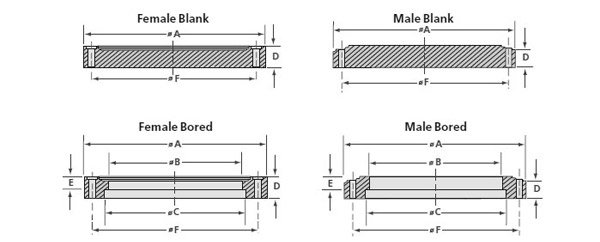

ANSI/ASME B16.5 Wire Seal Flange Dimensions
| Model Number Definitions: M = Male flange; F = Female flange. | |||||||
| OD | |||||||
| MODEL NUMBER | A | B | C | D | E | F | BOLT HOLES |
| WS-12-000M | 12.375 | – | – | 1.13 | – | 11.343 | 24 |
| WS-12-1000M | 12.375 | 9.750 | 10.020 | 1.13 | 0.630 | 11.343 | 24 |
| WS-12-000F | 12.375 | – | – | 1.13 | – | 11.343 | 24 |
| WS-12-1000F | 12.375 | 9.750 | 10.020 | 1.13 | 0.630 | 11.343 | 24 |
| WS-14-000M | 14.625 | – | – | 1.13 | – | 13.593 | 32 |
| WS-14-1200M | 14.625 | 11.750 | 12.020 | 1.13 | 0.630 | 13.593 | 32 |
| WS-14-000F | 14.625 | – | – | 1.13 | – | 13.593 | 32 |
| WS-14-1200F | 14.625 | 11.750 | 12.020 | 1.13 | 0.630 | 13.593 | 32 |
| WS-17-000M | 17.250 | – | – | 1.13 | – | 15.718 | 36 |
| WS-17-1400M | 17.250 | 13.750 | 14.020 | 1.13 | 0.630 | 15.718 | 36 |
| WS-17-000F | 17.250 | – | – | 1.13 | – | 15.718 | 36 |
| WS-17-1400F | 17.250 | 13.750 | 14.020 | 1.13 | 0.630 | 15.718 | 36 |
| WS-19-000M | 19.562 | – | – | 1.31 | – | 17.875 | 36 |
| WS-19-1600M | 19.562 | 15.750 | 16.020 | 1.31 | 0.630 | 17.875 | 36 |
| WS-19-000F | 19.562 | – | – | 1.31 | – | 17.875 | 36 |
| WS-19-1600F | 19.562 | 15.750 | 16.020 | 1.31 | 0.630 | 17.875 | 36 |
| WS-22-000M | 22.125 | – | – | 1.50 | – | 20.187 | 36 |
| WS-22-1800M | 22.125 | 17.750 | 18.020 | 1.50 | 1.000 | 20.187 | 36 |
| WS-22-000F | 22.125 | – | – | 1.50 | – | 20.187 | 36 |
| WS-22-1800F | 22.125 | 17.750 | 18.020 | 1.50 | 1.000 | 20.187 | 36 |
| WS-27-000M | 27.125 | – | – | 1.75 | – | 25.843 | 40 |
| WS-27-2400M | 27.125 | 23.625 | 24.020 | 1.75 | 1.125 | 25.843 | 40 |
| WS-27-000F | 27.125 | – | – | 1.75 | – | 25.843 | 40 |
| WS-27-2400F | 27.125 | 23.625 | 24.020 | 1.75 | 1.125 | 25.843 | 40 |
Best quality ASME B16.36 Wire Seal Flange Dimensions, Male and Female Wire Seal Vacuum Flange, Blank Wire Seal Flanges, Bored Wire Seal Flanges, Female Blank, Female Bored, Wearied ring flanges, Vacuum Wire Seal Flanges, Flat blank flanges, and Domed blank flanges, wire flange, o-ring flange in Mumbai, India.
Wire Seal Flanges Applications
-
Petrochemical Industries
-
Pharmaceutical Equipment
-
Power Generation
-
Heating Systems and Heat Exchanger
-
Pulp and Paper Industry
-
Mining Support
-
Chemical Equipment
-
Gas Processing
-
Plumbing
-
Nuclear Power Systems
-
Condensers
-
Sea Water Equipment
-
Buildings and Bridges
-
Industrial Water Lines
-
Food Processing Industry
-
Fire Protection Systems
-
Off-Shore Oil Drilling Companies
-
