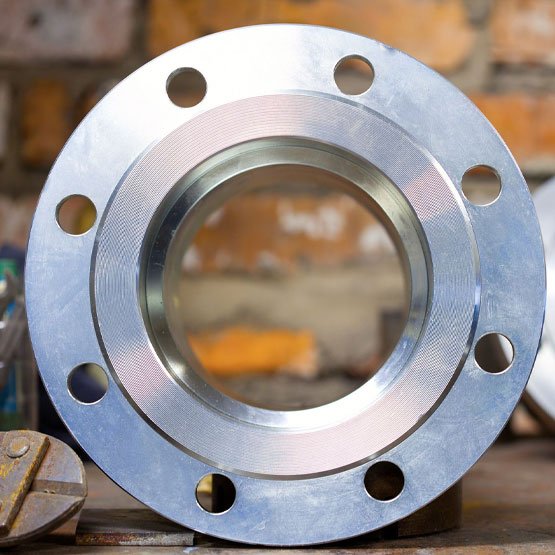

Hastelloy X Flanges, ASTM B564 Hastelloy X Flange

Name: Omaa Forged - Industrial Flanges and Round Bars
Rating: 5

ANSI B16.5 X Threaded Flanges, Hastelloy X Flanges, ASTM B564 Hastelloy X Pipe Flanges, UNS N06002 slip on Flanges Supplier, 2.4665 Socket Weld Flanges, Hastelloy X weld neck Flange, Nickel Alloy X Forged Flanges Manufacturer in India.

Hastelloy X is a high-temperature nickel-based alloy that contains a significant amount of chromium, molybdenum, and iron. Hastelloy X flanges are flanges made from this specific alloy.

Hastelloy X exhibits exceptional high-temperature strength and oxidation resistance, making it suitable for use in extreme environments. It offers excellent resistance to corrosion, including oxidation, carburization, and sulfidation. Hastelloy X flanges are commonly used in applications such as gas turbines, aircraft engines, industrial furnaces, and chemical processing.

Flanges made from Hastelloy X are available in various types, including weld neck, slip-on, threaded, socket weld, and blind flanges. These flanges are designed to connect pipes, valves, and other equipment in a piping system, providing a secure and leak-proof joint, even in high-temperature and corrosive environments.

When selecting Hastelloy X flanges, it is important to consider factors such as pressure rating, size, and connection type to ensure compatibility with the rest of the piping system. It is recommended to consult with a supplier or a qualified engineer to determine the specific requirements for your application and to ensure the proper selection and installation of these flanges.

ANSI/ASME B16.5 ASTM B564 Hastelloy X Flanges Supplier

Specifications Material Grades Dimensions Weight Chart Pressure Chart Schedule Chart Size Chart Applications

Check Sizes And Dimensions Of ASTM B564 Forged Flanges, ISO Approved Alloy X Blind Flanges, Hastelloy® Alloy X Spectacle Blind Flanges, Ready Stock of X Hastelloy Socket Weld Flange, Suppliers of X Hastelloy Alloy X Welding Neck Flange, Lap joint Flanges.

Hastelloy X Flange Specifications

Size Range

1/2" (15 NB) to 48" (1200NB) DN10~DN5000

Class / Pressure Rating

150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

Standards / Dimensions

ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, BS, GOST, MSS SP-44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605

Connection Type

Ring Joint Flange (RTJ), Flat Face Flange (FF), Raised Face Flange (RF), Male and Female Flange (M & F), Lap Joint Flange, Large and Small Tongue-and-Groove Flange (T & G)

Material Standards

ASTM B564/ ASME SB564

ASTM B564 Hastelloy X Flanges Equivalent Grade

STANDARD	WERKSTOFF NR.	UNS
Hastelloy X	2.4665	N06002

ANSI B16.5 Hastelloy X Flanges Chemical Composition

Grade	C	Mn	Si	C0	S	Fe	Ni	Cr	Mo	P
Hastelloy X	0.05 – 0.15	1.00 max	1.00 max	0.50 – 2.50	0.03 max	17.00 – 20.00	Balance	20.50 – 23.00	8.00 – 10.00	0.04 max

ASTM B564 Hastelloy X Flanges Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.22 g/cm³	1355°C	655 MPa	240 MPa	35%

Find the largest ready stock of Hastelloy X Flanges, X Hastelloy Flange Price List, Alloy X Reducing Flanges Stockist, Competitive Price of Hastelloy Alloy X Slip on Flange, UNS N06002 Flanges Exporter, Check Availability of ASTM B564 Hastelloy X Threaded Flanges, ASME SB564 Alloy X Plate flange Dimension, Hastelloy Alloy X BLRF Flanges Supplier, Hastelloy Alloy X Forged Flanges in Mumbai, India.

ASTM B564 Hastelloy X Flanges Dimensions & Size

NPS (in.)	Hastelloy X Flanges Dimensions
NPS (in.)	Dia. of Flange (in.)	No. of Bolts	Dia. of Bolts (in.)	Dia. of Bolt Holes (in.)	Bolt Circle (in.)
1/4	3-3/8	4	1/2	0.62	2-1/4
1/2	3-1/2	4	1/2	0.62	2-3/8
3/4	3-7/8	4	1/2	0.62	2-3/4
1	4-1/4	4	1/2	0.62	3-1/8
1-1/4	4-5/8	4	1/2	0.62	3-1/2
1-1/2	5	4	1/2	0.62	3-7/8
2	6	4	5/8	0.75	4-3/4
2-1/2	7	4	5/8	0.75	5-1/2
3	7-1/2	4	5/8	0.75	6
3-1/2	8-1/2	8	5/8	0.75	7
4	9	8	5/8	0.75	7-1/2
5	10	8	3/4	0.88	8-1/2
6	11	8	3/4	0.88	9-1/2
8	13-1/2	8	3/4	0.88	11-3/4
10	16	12	7/8	1	14-1/4
12	19	12	7/8	1	17
14	21	12	1	1.12	18-3/4
16	23-1/2	16	1	1.12	21-1/4
18	25	16	1-1/8	1.25	22-3/4
20	27-1/2	20	1-1/8	1.25	25
24	32	20	1-1/4	1.38	29-1/2

ASTM B564 Hastelloy X Flanges Weight Chart

Standard	Class	Diameter	Bolt Circle Diameter	Number of Bolts	Bolt Size	Diameter of Bolt Hole
15mm (1/2″) Hastelloy X Flange Weight Chart
ANSI B16.5 Flanges	ANSI 150 Flanges	89	60	4	13	16
	ANSI 300 Flanges	95	67	4	13	16
	ANSI 600 Flanges	95	67	4	13	16
	ANSI 900 Flanges	121	83	4	19	22
	ANSI 1500 Flanges	121	83	4	19	22
AS4087 Flanges	PN14 Flanges	95	67	4	M12	14
AS 2129 Flange	Table C Flanges	95	67	4	13	14
	Table D Flanges	95	67	4	13	14
	Table E Flanges	95	67	4	13	14
	Table F Flanges	95	67	4	13	14
	Table H Flanges	114	83	4	16	17
	Table J Flanges	114	83	4	16	17
ISO 7005 (DIN) Flange	PN6 Flanges	80	55	4	M10	11
	PN10 Flanges	95	65	4	M12	14
	PN16 Flanges	95	65	4	M12	14
	PN20 Flanges	90	60.5	4	M14	16
	PN25 Flanges	95	65	4	M12	14
	PN40 Flanges	95	65	4	M12	14

Hastelloy X Flange Pressure Ratings

NPS (Nominal Pipe Size)	SORF (Slip On)	NPT (Threaded)	SWRF (Socket Weld)	Loose (Lap Joint)	BLRF (Blind)	WRNR (Weld Neck)
½	1	1	2	1	2	2
¾	2	2	2	2	2	2
1	2	2	2	2	2	3
1¼	3	3	3	3	3	3
1½	3	3	3	3	4	4
2	5	5	5	5	5	6
2½	8	8	8	8	7	10
3	9	9	9	9	9	11.5
3½	11	12	11	11	13	12
4	13	13	13	13	17	16.5
5	15	15	15	15	20	21
6	19	19	19	19	27	26
8	30	30	30	30	47	42
10	43	43	43	43	70	54
12	64	64	64	64	123	88
14	90	90	90	105	140	114
16	106	98	98	140	180	140
18	130	130	130	160	220	165
20	165	165	165	195	285	197
22	185	185	185	245	355	225
24	220	220	220	275	430	268

Hastelloy X Flanges Dimensional Size Chart

Normal Sizes In inch	Dimension	Hastelloy X Flanges Dimensional Sizes 1/2 inch. to 2 1/2 inch.
		Class 125 Class 150		Class 300		Class 400		Class 600		Class 900		Class 1500		Class 2500
		inch.	mm	inch.	millimeter	inch.	mm	inch.	mm	inch.	mm	inch.	mm	inch		mm
1/2	A	3 1/2	88.9	3 3/4	95.2	3 3/4	95.2	3 3/4	95.2	4 3/4	121	4 3/4	121	5 1/4	133.4
	b	7/16	11.1	9/16	14.3	9/16	14.3	9/16	14.3	7/8	22.2	7/8	22.2	1 3/16	30.2
	D2	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9
	D1	2 3/8	60.3	2 5/8	66.7	2 5/8	66.7	2 5/8	66.7	3 1/4	82.6	3 1/4	82.6	3 1/2	88.9
	n	4	4	4	4	4	4	4	4	4	4	4	–	4	44
	d	5/8	15.9	5/8	15.9	5/8	15.9	5/8	15.9	7/8	22.2	7/8	22.2	7/8	22.2
3/4	A	3 7/8	98.4	4 5/8	117.5	4 5/8	117.5	4 5/8	117.5	5 1/8	130	5 1/8	130	5 1/2	139.7
	b	1/2	12.7	5/8	15.9	5/8	15.9	5/8	15.9	1	25.4	1	25.4	1 1/4	31.8
	D2	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9
	D1	2 3/4	69.8	3 1/4	82.5	3 1/4	82.5	3 1/4	82.5	3 1/2	88.9	3 1/2	88.9	3 3/4	95.2
	n	4	4	4	4	4	4	4	4	4	4	4	–	4	44
	d	5/8	15.9	3/4	19	3/4	19	3/4	19	7/8	22.2	7/8	22.2	7/8	22.2
1	A	4 1/4	108	4 7/8	123.8	4 7/8	123.8	4 7/8	123.8	5 7/8	149.2	5 7/8	149.2	6 1/4	159
	b	9/16	14.3	11/16	17.5	11/16	17.5	11/16	17.5	1 1/8	28.6	1 1/8	28.6	1 3/8	34.9
	D2	2	50.8	2	50.8	2	50.8	2	50.8	2	50.8	2	50.8	2	50.8
	D1	3 1/8	79.4	3 1/2	88.9	3 1/2	88.9	3 1/2	88.9	4	102	4	102	4 1/4	108
	n	4	4	4	4	4	4	4	4	4	4	4	4	4	4
	d	5/8	15.9	3/4	19	3/4	19	3/4	19	1	25.4	1	25.4	1	25.4
1 1/4	A	4 5/8	117.5	5 1/4	133.4	5 1/4	133.4	5 1/4	133.4	6 1/4	159	6 1/4	159	7 1/4	184.2
	b	5/8	15.9	3/4	19	13/16	20.6	13/16	20.6	1 1/8	28.6	1 1/8	28.6	1 1/2	38.1
	D2	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5
	D1	3 1/2	88.9	3 7/8	98.4	3 7/8	98.4	3 7/8	98.4	4 3/8	111	4 3/8	111	5 1/8	130
	n	4	4	4	4	4	4	4	4	4	4	4	4	4	4
	d	5/8	15.9	3/4	19	3/4	19	3/4	19	1	25.4	1	25.4	1 1/8	28.6
1 1/2	A	5	127	6 1/8	155.6	6 1/8	155.6	6 1/8	155.6	7	177.8	7	177.8	8	203
	b	11/16	17.5	13/16	20.6	7/8	22.2	7/8	22.2	1 1/4	31.8	1 1/4	31.8	1 3/4	44.5
	D2	2 7/8	73 98	2 7/8	73	2 7/8	73	2 7/8	73	2 7/8	73	2 7/8	73	2 7/8	73
	D1	3 7/8	4	4 1/2	114	4 1/2	114	4 1/2	114	4 7/8	124	4 7/8	124	5 3/4	146
	n	4	4	4	4	4	4	4	4	4	4	4	4	4	4
	d	5/8	. 15.9	7/8	22.2	7/8	22.2	7/8	22.2	1 1/8	28.6	1 1/8	28.6	1 1/4	31.8
2	A	6	152.4	6 1/2	165.1	6 1/2	165.1	6 1/2	165.1	8 1/2	215.9	8 1/2	215.9	9 1/4	234.9
	b	3/4	19	7/8	22.2	1	25.4	1	25.4	1 1/2	38.1	1 1/2	38.1	2	50.8
	D2	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1
	D1	4 3/4	121	5	127	5	127	5	127	6 1/2	165.1	6 1/2	165.1	6 3/4	171
	n	4	4	8	8	8	8	8	8	8	8	8	8	8	8
	d	3/4	19	3/4	19	3/4	19	3/4	19	1	25.4	1	25.4	1 1/8	28.6
2 1/2	A	7	177.8	7 1/2	190.5	7 1/2	190.5	7 1/2	190.5	9 5/8	244	9 5/8	244	10 1/2	266.7
	b	7/8	22.2	1	25.4	1 1/8	28.6	1 1/8	28.6	1 5/8	41.3	1 5/8	41.3	2 1/4	57.2
	D2	4 1/8	104.8	4 1/8	104.8	4 1/8	104.8	4 1/8	104.8	4 1/8	105	4 1/8	105	4 1/8	105
	D1	5 1/2	139.7	5 7/8	149.2	5 7/8	149.2	5 7/8	149.2	7 1/2	190.5	7 1/2	190.5	7 3/4	197
	n	4	4	8	8	8	8	8	8	8	8	8	8	8	8
	d	3/4	19	7/8	22.2	7/8	22.2	7/8	22.2	1 1/8	28.6	1 1/8	28.6	1 1/4	31.8

Grade X Hastelloy Flange Dimensional Tolerance

Outside Diameter	When O.D. is 24″ or less	±1.6mm﹡
Inside Diameter	10″ and smaller	±0.8mm
	12″ thru 18″	±1.6mm
	20″ and larger	+3.2mm, -1.6mm
Outside Diameter of hub	5″ and smaller	+2.4mm, -0.8mm﹡
Outside Diameter of hub	6″ and larger	+4.0mm, -0.8mm
Diameter of contact face	1/16″ rasied face tongue and groove male, female	±0.8mm
Diameter of contact face	1/4″ rasied face tongue and groove male, female	±0.4mm
Diameter of hub at base	when hub base is 24″ or smaller	±1.6mm﹡
Diameter of hub at point of welding	5″ and smaller	+2.4mm, -0.8mm
Diameter of hub at point of welding	6″ and larger	+4.0mm, -0.8mm
Drilling	Bolt circle	±1.6mm
	Bolt hole spacing	±0.8mm
	Eccentricity of bolt circle with respect to facing	2 1/2″ and smaller: 0.8mm, max﹡
	Eccentricity of bolt circle with respect to bore	3″ and larger: 1.6mm, max﹡
Thickness	18″ and smaller	+3.2mm, -0mm
Thickness	20″ and larger	+4.8mm, -0mm
Length of thru hub	10″ and smaller	±1.6mm
Length of thru hub	12″ and larger	±3.2mm

Best quality Hastelloy X Flanges, Alloy X Orifice Flanges, Hastelloy X Flanges Price, ASTM B564 X Flanges Facing Type & Finish, UNS N06002 Spectacle Blind Flange, Hastelloy Grade X Square Flange, Alloy Grade X Nipoflange, Hastelloy X Plate Flange Flat Face, Hastelloy X Class 150 Flanges Raised Face, View Specification Of ASME B16.5 X Hastelloy Orifice Flange, WERKSTOFF NR. 2.4665 Groove Flange, Hastelloy X Expander Flanges at Best Price.

ASTM B564 Hastelloy X Flanges Applications
