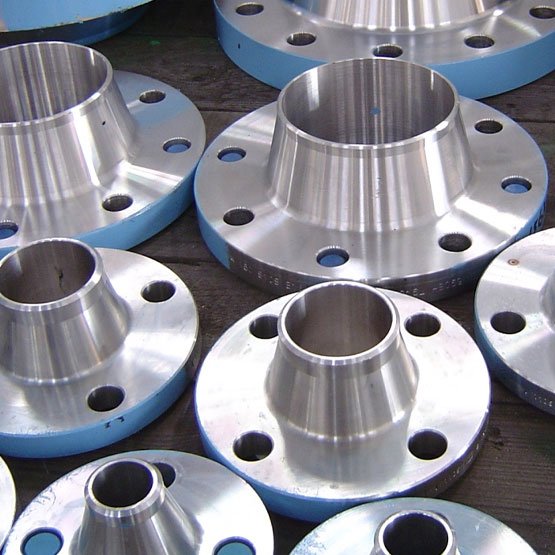

Hastelloy B2 Flanges, ASTM B564 Hastelloy B2 Flanges

Name: Omaa Forged - Industrial Flanges and Round Bars
Rating: 5

ANSI B16.5 B2 Threaded Flanges, ASTM B564 Hastelloy B2 Pipe Flanges, UNS N10665 slip on Flanges Supplier, 2.4617 Socket Weld Flanges, Hastelloy B2 weld neck Flange, Nickel Alloy B2 Forged Flanges Manufacturer in India.

Hastelloy B2 is a nickel-molybdenum alloy with excellent resistance to various reducing agents, including hydrochloric acid, sulfuric acid, and phosphoric acid. Hastelloy B2 flanges are flanges made from this specific alloy.

Hastelloy B2 offers outstanding corrosion resistance, especially in environments with aggressive chemical conditions. It exhibits resistance to pitting, stress corrosion cracking, and corrosion-induced intergranular cracking. Hastelloy B2 flanges are commonly used in applications involving chemical processing, pharmaceuticals, pollution control, and other industries where corrosion resistance is critical.

Flanges made from Hastelloy B2 are available in various types, including weld neck, slip-on, threaded, socket weld, and blind flanges. They are designed to connect pipes, valves, and other equipment in a piping system, ensuring a secure and leak-proof joint, even in highly corrosive environments.

When selecting Hastelloy B2 flanges, it is important to consider factors such as pressure rating, size, and connection type to ensure compatibility with the rest of the piping system. It is advisable to consult with a supplier or a qualified engineer to determine the specific requirements for your application and to ensure the proper selection and installation of these flanges.

ANSI/ASME B16.5 ASTM B564 Hastelloy B2 Flanges Supplier

Specifications Material Grades Dimensions Weight Chart Pressure Chart Schedule Chart Size Chart Applications

Suppliers of B2 Hastelloy Alloy B2 Welding Neck Flange, Lap joint Flanges, ISO Approved Alloy B2 Blind Flanges, Hastelloy® Alloy B2 Spectacle Blind Flanges, Check Sizes And Dimensions Of ASTM B564 Forged Flanges, Ready Stock of B2 Hastelloy Socket Weld Flange.

Hastelloy B2 Flange Specifications

Size Range

1/2" (15 NB) to 48" (1200NB) DN10~DN5000

Class / Pressure Rating

150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

Standards / Dimensions

ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, BS, GOST, MSS SP-44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605

Connection Type

Ring Joint Flange (RTJ), Flat Face Flange (FF), Raised Face Flange (RF), Male and Female Flange (M & F), Lap Joint Flange, Large and Small Tongue-and-Groove Flange (T & G)

Material Standards

ASTM B564/ ASME SB564

ASTM B564 Hastelloy B2 Flanges Equivalent Grade

STANDARD	WERKSTOFF NR.	UNS
Hastelloy B2	2.4617	N10665

ANSI B16.5 Hastelloy B2 Flanges Chemical Composition

Grade	C	Mn	Si	Co	S	Ni	Cr	Fe	Mo	W	V	P
Hastelloy B2	0.02 max	1.0 max	0.1 max	1.0 max	0.03 max	Bal	1.0 max	2 max	26-30	–	–	0.04 max

ASTM B564 Hastelloy B2 Flanges Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Hastelloy B2	9.2 g/cm3	1370 °C (2500 °F)	Psi – 1,10,000 , MPa – 760	Psi – 51000 , MPa – 350	40 %

Find the largest ready stock of Hastelloy B2 Flanges, Hastelloy Alloy B2 BLRF Flanges Supplier, Alloy B2 Reducing Flanges Stockist, Competitive Price of Hastelloy Alloy B2 Slip on Flange, B2 Hastelloy Flange Price List, UNS N10665 Flanges Exporter, Check Availability of ASTM B564 Hastelloy B2 Threaded Flanges, ASME SB564 Alloy B2 Plate flange Dimension, Hastelloy Alloy B2 Forged Flanges in Mumbai, India.

ASTM B564 Hastelloy B2 Flanges Dimensions & Size

NPS (in.)	Hastelloy B2 Flanges Dimensions
NPS (in.)	Dia. of Flange (in.)	No. of Bolts	Dia. of Bolts (in.)	Dia. of Bolt Holes (in.)	Bolt Circle (in.)
1/4	3-3/8	4	1/2	0.62	2-1/4
1/2	3-1/2	4	1/2	0.62	2-3/8
3/4	3-7/8	4	1/2	0.62	2-3/4
1	4-1/4	4	1/2	0.62	3-1/8
1-1/4	4-5/8	4	1/2	0.62	3-1/2
1-1/2	5	4	1/2	0.62	3-7/8
2	6	4	5/8	0.75	4-3/4
2-1/2	7	4	5/8	0.75	5-1/2
3	7-1/2	4	5/8	0.75	6
3-1/2	8-1/2	8	5/8	0.75	7
4	9	8	5/8	0.75	7-1/2
5	10	8	3/4	0.88	8-1/2
6	11	8	3/4	0.88	9-1/2
8	13-1/2	8	3/4	0.88	11-3/4
10	16	12	7/8	1	14-1/4
12	19	12	7/8	1	17
14	21	12	1	1.12	18-3/4
16	23-1/2	16	1	1.12	21-1/4
18	25	16	1-1/8	1.25	22-3/4
20	27-1/2	20	1-1/8	1.25	25
24	32	20	1-1/4	1.38	29-1/2

ASTM B564 Hastelloy B2 Flanges Weight Chart

Standard	Class	Diameter	Bolt Circle Diameter	Number of Bolts	Bolt Size	Diameter of Bolt Hole
15mm (1/2″) Hastelloy B2 Flange Weight Chart
ANSI B16.5 Flanges	ANSI 150 Flanges	89	60	4	13	16
	ANSI 300 Flanges	95	67	4	13	16
	ANSI 600 Flanges	95	67	4	13	16
	ANSI 900 Flanges	121	83	4	19	22
	ANSI 1500 Flanges	121	83	4	19	22
AS4087 Flanges	PN14 Flanges	95	67	4	M12	14
AS 2129 Flange	Table C Flanges	95	67	4	13	14
	Table D Flanges	95	67	4	13	14
	Table E Flanges	95	67	4	13	14
	Table F Flanges	95	67	4	13	14
	Table H Flanges	114	83	4	16	17
	Table J Flanges	114	83	4	16	17
ISO 7005 (DIN) Flange	PN6 Flanges	80	55	4	M10	11
	PN10 Flanges	95	65	4	M12	14
	PN16 Flanges	95	65	4	M12	14
	PN20 Flanges	90	60.5	4	M14	16
	PN25 Flanges	95	65	4	M12	14
	PN40 Flanges	95	65	4	M12	14

Hastelloy B2 Flange Pressure Ratings

NPS (Nominal Pipe Size)	SORF (Slip On)	NPT (Threaded)	SWRF (Socket Weld)	Loose (Lap Joint)	BLRF (Blind)	WRNR (Weld Neck)
½	1	1	2	1	2	2
¾	2	2	2	2	2	2
1	2	2	2	2	2	3
1¼	3	3	3	3	3	3
1½	3	3	3	3	4	4
2	5	5	5	5	5	6
2½	8	8	8	8	7	10
3	9	9	9	9	9	11.5
3½	11	12	11	11	13	12
4	13	13	13	13	17	16.5
5	15	15	15	15	20	21
6	19	19	19	19	27	26
8	30	30	30	30	47	42
10	43	43	43	43	70	54
12	64	64	64	64	123	88
14	90	90	90	105	140	114
16	106	98	98	140	180	140
18	130	130	130	160	220	165
20	165	165	165	195	285	197
22	185	185	185	245	355	225
24	220	220	220	275	430	268

Hastelloy B2 Flanges Dimensional Size Chart

Normal Sizes In inch	Dimension	Hastelloy B2 Flanges Dimensional Sizes 1/2 inch. to 2 1/2 inch.
		Class 125 Class 150		Class 300		Class 400		Class 600		Class 900		Class 1500		Class 2500
		inch.	mm	inch.	millimeter	inch.	mm	inch.	mm	inch.	mm	inch.	mm	inch		mm
1/2	A	3 1/2	88.9	3 3/4	95.2	3 3/4	95.2	3 3/4	95.2	4 3/4	121	4 3/4	121	5 1/4	133.4
	b	7/16	11.1	9/16	14.3	9/16	14.3	9/16	14.3	7/8	22.2	7/8	22.2	1 3/16	30.2
	D2	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9
	D1	2 3/8	60.3	2 5/8	66.7	2 5/8	66.7	2 5/8	66.7	3 1/4	82.6	3 1/4	82.6	3 1/2	88.9
	n	4	4	4	4	4	4	4	4	4	4	4	–	4	44
	d	5/8	15.9	5/8	15.9	5/8	15.9	5/8	15.9	7/8	22.2	7/8	22.2	7/8	22.2
3/4	A	3 7/8	98.4	4 5/8	117.5	4 5/8	117.5	4 5/8	117.5	5 1/8	130	5 1/8	130	5 1/2	139.7
	b	1/2	12.7	5/8	15.9	5/8	15.9	5/8	15.9	1	25.4	1	25.4	1 1/4	31.8
	D2	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9
	D1	2 3/4	69.8	3 1/4	82.5	3 1/4	82.5	3 1/4	82.5	3 1/2	88.9	3 1/2	88.9	3 3/4	95.2
	n	4	4	4	4	4	4	4	4	4	4	4	–	4	44
	d	5/8	15.9	3/4	19	3/4	19	3/4	19	7/8	22.2	7/8	22.2	7/8	22.2
1	A	4 1/4	108	4 7/8	123.8	4 7/8	123.8	4 7/8	123.8	5 7/8	149.2	5 7/8	149.2	6 1/4	159
	b	9/16	14.3	11/16	17.5	11/16	17.5	11/16	17.5	1 1/8	28.6	1 1/8	28.6	1 3/8	34.9
	D2	2	50.8	2	50.8	2	50.8	2	50.8	2	50.8	2	50.8	2	50.8
	D1	3 1/8	79.4	3 1/2	88.9	3 1/2	88.9	3 1/2	88.9	4	102	4	102	4 1/4	108
	n	4	4	4	4	4	4	4	4	4	4	4	4	4	4
	d	5/8	15.9	3/4	19	3/4	19	3/4	19	1	25.4	1	25.4	1	25.4
1 1/4	A	4 5/8	117.5	5 1/4	133.4	5 1/4	133.4	5 1/4	133.4	6 1/4	159	6 1/4	159	7 1/4	184.2
	b	5/8	15.9	3/4	19	13/16	20.6	13/16	20.6	1 1/8	28.6	1 1/8	28.6	1 1/2	38.1
	D2	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5
	D1	3 1/2	88.9	3 7/8	98.4	3 7/8	98.4	3 7/8	98.4	4 3/8	111	4 3/8	111	5 1/8	130
	n	4	4	4	4	4	4	4	4	4	4	4	4	4	4
	d	5/8	15.9	3/4	19	3/4	19	3/4	19	1	25.4	1	25.4	1 1/8	28.6
1 1/2	A	5	127	6 1/8	155.6	6 1/8	155.6	6 1/8	155.6	7	177.8	7	177.8	8	203
	b	11/16	17.5	13/16	20.6	7/8	22.2	7/8	22.2	1 1/4	31.8	1 1/4	31.8	1 3/4	44.5
	D2	2 7/8	73 98	2 7/8	73	2 7/8	73	2 7/8	73	2 7/8	73	2 7/8	73	2 7/8	73
	D1	3 7/8	4	4 1/2	114	4 1/2	114	4 1/2	114	4 7/8	124	4 7/8	124	5 3/4	146
	n	4	4	4	4	4	4	4	4	4	4	4	4	4	4
	d	5/8	. 15.9	7/8	22.2	7/8	22.2	7/8	22.2	1 1/8	28.6	1 1/8	28.6	1 1/4	31.8
2	A	6	152.4	6 1/2	165.1	6 1/2	165.1	6 1/2	165.1	8 1/2	215.9	8 1/2	215.9	9 1/4	234.9
	b	3/4	19	7/8	22.2	1	25.4	1	25.4	1 1/2	38.1	1 1/2	38.1	2	50.8
	D2	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1
	D1	4 3/4	121	5	127	5	127	5	127	6 1/2	165.1	6 1/2	165.1	6 3/4	171
	n	4	4	8	8	8	8	8	8	8	8	8	8	8	8
	d	3/4	19	3/4	19	3/4	19	3/4	19	1	25.4	1	25.4	1 1/8	28.6
2 1/2	A	7	177.8	7 1/2	190.5	7 1/2	190.5	7 1/2	190.5	9 5/8	244	9 5/8	244	10 1/2	266.7
	b	7/8	22.2	1	25.4	1 1/8	28.6	1 1/8	28.6	1 5/8	41.3	1 5/8	41.3	2 1/4	57.2
	D2	4 1/8	104.8	4 1/8	104.8	4 1/8	104.8	4 1/8	104.8	4 1/8	105	4 1/8	105	4 1/8	105
	D1	5 1/2	139.7	5 7/8	149.2	5 7/8	149.2	5 7/8	149.2	7 1/2	190.5	7 1/2	190.5	7 3/4	197
	n	4	4	8	8	8	8	8	8	8	8	8	8	8	8
	d	3/4	19	7/8	22.2	7/8	22.2	7/8	22.2	1 1/8	28.6	1 1/8	28.6	1 1/4	31.8

Grade B2 Hastelloy Flange Dimensional Tolerance

Outside Diameter	When O.D. is 24″ or less	±1.6mm﹡
Inside Diameter	10″ and smaller	±0.8mm
	12″ thru 18″	±1.6mm
	20″ and larger	+3.2mm, -1.6mm
Outside Diameter of hub	5″ and smaller	+2.4mm, -0.8mm﹡
Outside Diameter of hub	6″ and larger	+4.0mm, -0.8mm
Diameter of contact face	1/16″ rasied face tongue and groove male, female	±0.8mm
Diameter of contact face	1/4″ rasied face tongue and groove male, female	±0.4mm
Diameter of hub at base	when hub base is 24″ or smaller	±1.6mm﹡
Diameter of hub at point of welding	5″ and smaller	+2.4mm, -0.8mm
Diameter of hub at point of welding	6″ and larger	+4.0mm, -0.8mm
Drilling	Bolt circle	±1.6mm
	Bolt hole spacing	±0.8mm
	Eccentricity of bolt circle with respect to facing	2 1/2″ and smaller: 0.8mm, max﹡
	Eccentricity of bolt circle with respect to bore	3″ and larger: 1.6mm, max﹡
Thickness	18″ and smaller	+3.2mm, -0mm
Thickness	20″ and larger	+4.8mm, -0mm
Length of thru hub	10″ and smaller	±1.6mm
Length of thru hub	12″ and larger	±3.2mm

Best quality Hastelloy B2 Flanges, Alloy B2 Orifice Flanges, View Specification Of ASME B16.5 B2 Hastelloy Orifice Flange, ASTM B564 Alloy B2 Long Weld Neck Flange, Hastelloy B2 Flanges Price, ASTM B564 B2 Flanges Facing Type & Finish, UNS N10665 Spectacle Blind Flange, Hastelloy Grade B2 Square Flange, MSS SP-44 Hastelloy B2 Flange, Alloy Grade B2 Nipoflange, Hastelloy B2 Class 150 Flanges Raised Face, WERKSTOFF NR. 2.4617 Groove Flange, Hastelloy B2 Expander Flanges at Best Price.

ASTM B564 Hastelloy B2 Flanges Applications
