Socket Weld Flange ASME B16.47 / ANSI B16.5, SWF, SWRF

Name: Omaa Forged - Industrial Flanges and Round Bars
Rating: 5

Socket Weld Flange Manufacturers and Suppliers in India, SWRF Flange, ANSI B16.5 Dimensions, ASME B16.47 Weight Chart, DIN Socket Welding Flanges

Socket weld flanges are a type of flange that is designed to be welded to a pipe using a socket weld connection. The socket weld flange has a circular recess in its center that is used to insert the end of the pipe, creating a tight seal. The flange is then welded to the pipe, creating a strong and secure connection.

Socket weld flanges are commonly used in applications where there is a need for a strong and leak-proof connection, such as in high-pressure and high-temperature piping systems. They are also used in systems that require frequent disassembly and reassembly, as the socket weld connection allows for easy and quick installation and removal of the flange.

Socket weld flanges are available in a wide range of materials, including carbon steel, stainless steel, and various alloys. The choice of material will depend on the specific application and the requirements for strength, corrosion resistance, and other properties.

Socket weld flanges are commonly used in industries such as oil and gas, chemical processing, and power generation. They are also used in piping systems that are subject to thermal expansion and contraction, as the socket weld connection allows for some movement without causing stress on the flange or the pipe.

Specifications Material Grades Dimensions Weight Chart Schedule Chart Applications

Carbon Steel Socket Weld Flange, Inconel 600 Socket Weld Flange, ASTM A182 Reducing Socket Weld Flange, Galvanized Raised Face Socket Weld Flange, SAE Socket Weld Flange, MS Socket Weld Blind Flange, Titanium Socket Weld RF Flange, Socket Weld RTJ Flange NPS, Sch 40 Schedule 80 Stainless Steel 304, 304L, 316, 316L, and 904L Socket Weld Ring Joint Flange at the Lowest Prices.

DETAILED INFORMATION

Welcome to Omaa Metal Sources – Your Trusted Partner for Socket Weld Flanges

At Omaa Metal Sources, we take pride in being a leading manufacturer, stockist, supplier, and exporter of high-quality Socket Weld Flanges. With years of experience and a commitment to excellence, we have established ourselves as a reliable and trusted source for all your flange requirements.

Our Socket Weld Flanges are designed and manufactured to meet international standards, ensuring superior performance, durability, and precision. We offer a wide range of socket weld flanges in various sizes, materials, and specifications, catering to diverse industrial applications.

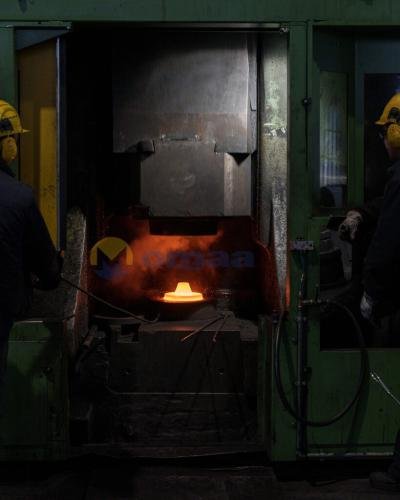

Manufacturing Excellence
As a manufacturer, we adhere to stringent quality control measures and employ advanced manufacturing techniques to produce socket weld flanges of exceptional quality. Our state-of-the-art manufacturing facilities are equipped with modern machinery and a skilled workforce, allowing us to meet the highest industry standards.

Our team of experienced engineers and technicians meticulously craft each socket weld flange, ensuring dimensional accuracy, flawless finishes, and reliable functionality. We use only the finest quality raw materials sourced from trusted suppliers, guaranteeing the integrity and strength of our products.

Comprehensive Stock and Timely Delivery
As a stockist, we maintain a comprehensive inventory of socket weld flanges to cater to your immediate requirements. Our vast stock ensures that you have access to a wide range of sizes, materials, and grades, enabling you to find the perfect solution for your specific needs.

We understand the importance of timely delivery, and our streamlined logistics and efficient supply chain management enable us to dispatch orders promptly. Whether you need a single socket weld flange or a bulk order, we are equipped to handle your requirements with speed and efficiency.

Global Supplier and Exporter
As a supplier and exporter, we have established strong partnerships with clients worldwide, delivering our socket weld flanges to various industries across the globe. Our commitment to quality, reliability, and customer satisfaction has earned us a reputation as a preferred supplier among discerning customers.

We comply with all relevant international standards and certifications, ensuring that our socket weld flanges meet the highest quality benchmarks. Our export operations are supported by a dedicated team that handles documentation, logistics, and customs compliance, ensuring a hassle-free experience for our international clients.

Customer Satisfaction and Support
At Omaa Metal Sources, we prioritize customer satisfaction and aim to provide exceptional service throughout your engagement with us. Our knowledgeable sales team is ready to assist you in selecting the right socket weld flanges for your application, offering technical guidance and product recommendations.

We value long-term relationships with our customers and believe in providing excellent after-sales support. Should you have any queries, concerns, or requests, our dedicated customer support team is always available to address your needs and provide timely assistance.

Choose Omaa Metal Sources for Your Socket Weld Flange Requirements
When it comes to socket weld flanges, Omaa Metal Sources is your trusted partner. With our commitment to quality, extensive stock, global reach, and customer-centric approach, we aim to exceed your expectations and deliver products that meet your exact specifications.

Contact us today to discuss your socket weld flange requirements or to learn more about our comprehensive range of products and services. Experience the reliability, quality, and excellence that sets Omaa Metal Sources apart in the industry.

Socket Weld Flange Specifications

Size Range

1/2" (15 NB) to 48" (1200NB) DN10~DN5000

Class / Pressure Rating

150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 Socket Weld Flange

Standards / Dimensions

ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/ 16.36/ 16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092

Connection Type

Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove

Material Standards

ASTM A105, ASTM A350, ASTM A182, ASTM A216, ASTM A352, ASTM A217, ASTM A515, ASTM A516, ASTM A203, A204, ASTM A387, ASTM A240, ASTM A694 Socket Weld Flange

Socket Weld Flange Materials & Grades

ASTM A182 Socket Weld Flange
Stainless Steel 304, 304L, 316, 316L, 316H, 316Ti, 310, 310S, 317, 317L, 321, 347, 347H, 904L, SMO 254/6Mo, Duplex Steel-S31803/S32205, Super Duplex-S32750/S32760 F51, F52, F53, F54, F55, F57, F59, F60, F61, Alloy Steel F1, F5, F9, F11, F12, F22, F91

ASTM B564 Socket Weld Flange
Incoloy 800, 800H, 800HT, 825, 925, Inconel 600, 601, 625, 718, 783, 690, X750, Nickel 200, 201, 205, 205LC, Hastelloy C276, C22, C4, C2000, B2, B3, X, Monel 400, 500

ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 Socket Weld Flange
Carbon Steel LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706 Low Temperature Carbon Steel Socket weld Flanges : ASTM A350, LF2, LF3

ASTM B247 Socket Weld Flange
Aluminium 7075, 5086, 6082, 3003, 5083, 6061, 1100

ASTM B61 / B62 / B151 / B152 Socket Weld Flange
Copper Nickel 90/10 (C70600 ), 70/30 (C71500), UNS C71640

ASTM B381 Socket Weld Flange
Titanium Grade 1, Grade 2, Grade 3, Grade 4, Grade 5, Grade 6, Grade 7, Grade 9, Grade 12

Find the largest ready stock of PN16 Socket Weld Flange, 150# 300# 600# 1500# 2500# Socket Weld Flange Dimensions, SAE Code 61 & 62 Socket Weld Flange, Socket Weld Counter Flange, Socket Weld Hydraulic Flanges, Socket Weld Orifice Flange, Socket Weld Slip On Flange in Mumbai, India.

ASME B16.5 Socket Weld Flange Dimensions

ANSI/ASME/ASA B16.5 150lb/sq.in. Flange SW-RF

Size in Inch	Size in mm	Outer Dia.	Flange Thick.	Hub OD	Flange Length	RF Dia.	RF Height	Socket Depth	PCD	Socket Bore	No of Bolts	Bolt Size UNC	Machine Bolt Length	RF Stud Length	Hole Size	ISO Stud Size	Weight in kg
A	B	C	D	E	F	G	H	J
1/2	15	90	9.6	30	14	34.9	2	10	60.3	22.2	4	1/2	50	55	5/8	M14	0.8
3/4	20	100	11.2	38	14	42.9	2	11	69.9	27.7	4	1/2	50	65	5/8	M14	0.9
1	25	110	12.7	49	16	50.8	2	13	79.4	34.5	4	1/2	55	65	5/8	M14	0.9
1 1/4	32	115	14.3	59	19	63.5	2	14	88.9	43.2	4	1/2	55	70	5/8	M14	1.4
1 1/2	40	125	15.9	65	21	73	2	16	98.4	49.5	4	1/2	65	70	5/8	M14	1.4
2	50	150	17.5	78	24	92.1	2	17	120.7	61.9	4	5/8	70	85	3/4	M16	2.3
2 1/2	65	180	20.7	90	27	105	2	19	139.7	74.6	4	5/8	75	90	3/4	M16	3.2
3	80	190	22.3	108	29	127	2	21	152.4	90.7	4	5/8	75	90	3/4	M16	3.7

ANSI/ASME/ASA B16.5 300lb/sq.in. Flange SW-RF

Size in Inch	Size in mm	Outer Dia.	Flange Thick.	Hub OD	Flange Length	RF Dia.	RF Height	Socket Depth	PCD	Socket Bore	No of Bolts	Bolt Size UNC	Machine Bolt Length	RF Stud Length	Hole Size	ISO Stud Size	Weight in kg
A	B	C	D	E	F	G	H	J
1/2	15	95	12.7	38	21	34.9	2	10	66.7	22.2	4	1/2	55	65	5/8	M14	1.2
3/4	20	115	14.3	48	24	42.9	2	11	82.6	27.7	4	5/8	65	75	3/4	M16	1.4
1	25	125	15.9	54	25	50.8	2	13	88.9	34.5	4	5/8	65	75	3/4	M16	1.4
1 1/4	32	135	17.5	64	25	63.5	2	14	98.4	43.2	4	5/8	70	85	3/4	M16	1.8
1 1/2	40	155	19.1	70	29	73	2	16	114.3	49.5	4	3/4	75	90	7/8	M20	2.7
2	50	165	20.7	84	32	92.1	2	17	127	61.9	8	5/8	75	90	3/4	M16	3.2
2 1/2	65	190	23.9	100	37	105	2	19	149.2	74.6	8	3/4	85	100	7/8	M20	4.6
3	80	210	27	117	41	127	2	21	168.3	90.7	8	3/4	90	110	7/8	M20	5.9

ANSI/ASME/ASA B16.5 600lb/sq.in. Flange SW-RF

Size in Inch	Size in mm	Outer Dia.	Flange Thick.	Hub OD	Flange Length	RF Dia.	RF Height	Socket Depth	PCD	Socket Bore	No of Bolts	Bolt Size UNC	RF Stud Length	Hole Size	ISO Stud Size	Weight in kg
A	B	C	D	E	F	G	H	J
1/2	15	95	14.3	38	22	34.9	7	10	66.7	22.2	4	1/2	75	5/8	M14	1.3
3/4	20	115	15.9	48	25	42.9	7	11	82.6	27.7	4	5/8	90	3/4	M16	1.4
1	25	125	17.5	54	27	50.8	7	13	88.9	34.5	4	5/8	90	3/4	M16	1.8
1 1/4	32	135	20.7	64	29	63.5	7	14	98.4	43.2	4	5/8	95	3/4	M16	2.3
1 1/2	40	155	22.3	70	32	73	7	16	114.3	49.5	4	3/4	110	7/8	M20	3.2
2	50	165	25.4	84	37	92.1	7	17	127	61.9	8	5/8	110	3/4	M16	4.1
2 1/2	65	190	28.6	100	41	105	7	19	149.2	74.6	8	3/4	120	7/8	M20	5.9
3	80	210	31.8	117	46	127	7	21	168.3	90.7	8	3/4	125	7/8	M20	7.3

ANSI B16.5 Socket Weld Flange Weight Chart

NPS	150#			300#			600#			900#			1500#			2500#
	WN	S/O	B/K	WN	S/O	B/K	WN	S/O	B/K	WN	S/O	B/K	WN	S/O	B/K	WN	S/O	B/K
1/2”	0.7	0.4	0.5	0.8	0.7	0.8	0.9	0.8	0.8	2.1	1.8	1.9	2.1	1.8	1.9	3.2	3	3
3/4”	0.8	0.7	0.8	1.4	1.2	1.2	1.6	1.4	1.4	2.7	2.4	2.7	2.7	2.4	2.7	3.6	4	4.5
1”	1.1	0.8	0.9	1.7	1.4	1.5	1.9	1.7	1.7	3.9	3.6	3.7	3.9	3.6	3.7	5.4	5	5
1.1/4”	1.5	1.2	1.3	2.2	1.8	2	2.6	2.1	2.4	4.5	4.1	4.3	4.5	4.1	4.3	7.8	8	8
1.1/2”	1.8	1.4	1.6	3.2	2.7	2.9	3.6	3.1	3.4	6.2	5.4	5.9	6.2	5.4	5.9	11.5	11	11
2”	2.7	2.2	2.6	3.6	3.2	3.5	4.7	3.9	4.4	11.3	10.5	11.3	11.3	10.5	11.3	19	17	17
2.1/2”	4.4	3.5	4.1	5.4	4.5	5.3	4.8	5.4	6.8	16.3	15.8	16	16.3	15.8	16	24	25	25
3”	5.2	3.8	5.1	7.3	5.9	7.2	8.7	7.3	8.9	15	12.3	16.8	21	21.5	19.5	42.6	38	39
3-1/2”	6.4	5	6.5	8.9	7.5	9.2	11.6	9	12.7	–	–	–	–	–	–	–	–	–
4”	7.5	5.6	7.5	11.8	10	12.2	18.4	16.5	18.6	24	23.2	24.5	31.8	31	33	64	58	60
5”	9.2	6.5	9.2	16	12.5	16	31	28.5	30.8	38.5	37.5	39.5	59	58.8	60	111	95	101
6”	11.0	8.1	11.8	20.2	16.5	22	37	36.2	38	50	48.3	51.5	72	74	75	171	146	156
8”	18.4	13	20.4	31.2	25.5	36	54.5	51.5	62.2	85	75	89	124	112	125	261	220	242
10”	25.5	18.4	31	44.3	35	55	98.5	76.2	102	123	110	131	207	184	215	485	420	465
12”	37	28.5	47	63.5	52	82.5	105	89.5	132	168	146	187	306	264	316	698	590	665
14”	51	37.5	60	86	73	108	150	102	158	198	172	224	416	–	–	–	–	–
16”	61.5	44.5	61	112	88	139	177	150	225	225	192	259	567	–	–	–	–	–
18”	71.5	54	93	141	115	178	228	180	285	318	272	383	736	–	–	–	–	–
20”	85	72	127	173	139	228	285	231	365	376	330	482	929	–	–	–	–	–
24”	119	95	190	248	212	350	372	330	532	680	632	905	1504	–	–	–	–	–

Socket Weld Flange Schedule Chart

Nom Pipe Size	Outside Diam	Sched 10	Sched 20	Sched 30	Std. Wall	Sched 40	Sched 60	Extra Strong	Sched 80	Sched 100	Sched 120	Sched 140	Sched 160	Double Extra Strong
1/2”	0.840	0.674	–	–	0.622	0.622	–	0.546	0.546	–	–	–	0.464	0.252
3/4”	1.050	0.884	–	–	0.824	0.824	–	0.742	0.742	–	–	–	0.612	0.434
1”	1.315	1.097	–	–	1.049	1.049	–	0.957	0.957	–	–	–	0.815	0.599
1.1/4”	1.660	1.442	–	–	1.380	1.380	–	1.278	1.278	–	–	–	1.160	0.896
1.1/2”	1.900	1.682	–	–	1.610	1.610	–	1.500	1.500	–	–	–	1.338	1.100
2”	2.375	2.157	–	–	2.067	2.067	–	1.939	1.939	–	–	–	1.687	1.503
2.1/2”	2.875	2.635	–	–	2.469	2.469	–	2.323	2.323	–	–	–	2.125	1.771
3”	3.500	3.260	–	–	3.068	3.068	–	2.900	2.900	–	–	–	2.624	2.300
3-1/2”	4.000	3.760	–	–	3.548	3.548	–	3.364	3.364	–	–	–	–	2.728
4”	4.500	4.260	–	–	4.026	4.026	–	3.826	3.826	–	3.624	–	3.438	3.152
5”	5.563	5.295	–	–	5.047	5.047	–	4.813	4.813	–	4.563	–	4.313	4.063
6”	6.625	6.357	–	–	6.065	6.065	–	5.761	5.761	–	5.501	–	5.187	4.897
8”	8.625	8.329	8.125	8.071	7.981	7.981	7.813	7.625	7.625	7.437	7.187	7.001	6.813	6.875
10”	10.750	10.420	10.250	10.136	10.020	10.020	9.750	9.750	9.562	9.312	9.062	8.750	8.500	8.750
12”	12.750	10.420	10.250	12.090	12.000	11.938	11.626	11.750	11.374	11.062	10.750	10.500	10.126	10.750
14”	14.000	13.500	13.376	13.250	13.250	13.124	12.812	13.000	12.500	12.124	11.814	11.500	11.188	–
16”	16.000	15.500	15.376	15.250	15.250	15.000	14.688	15.000	14.312	13.938	13.564	13.124	12.812	–
18”	18.000	17.500	17.376	17.124	17.250	16.876	16.500	17.000	16.124	15.688	15.250	14.876	14.438	–
20”	20.000	19.500	19.250	19.000	19.250	18.812	18.376	19.000	17.938	17.438	17.000	16.500	16.062	–
24”	24.000	23.500	23.250	22.876	23.250	22.624	22.062	23.000	21.562	20.938	20.376	19.876	19.312	–
30”	30.000	29.376	29.000	28.750	29.250	–	–	29.000	–	–	–	–	–	–
36”	36.000	35.376	35.000	34.750	35.250	34.500	–	35.000	–	–	–	–	–	–
42”	42.000	–	–	–	41.250	–	–	41.000	–	–	–	–	–	–

Highly demanded and best quality Socket Weld Flanges by size range in 1/2 Inch, 3/4 Inch, 1 Inch, 1.5 Inch, 2 Inch, 3 Inch, 4 Inch, 5 Inch, 16 Inch.
