Plate Flange ASME B16.47 / ANSI B16.5, Plate Flanges

Name: Omaa Forged - Industrial Flanges and Round Bars
Rating: 5

Plate Flange Manufacturers and Suppliers in India, ANSI B16.5 Plate Flange, ASME B16.47 Plate Flange Dimensions, MSS SP-44 Plate Flanges, Din Plate Flange Supplier

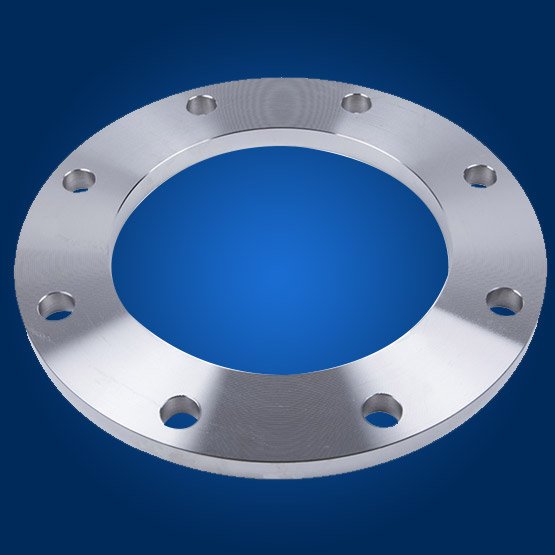

A plate flange is a type of flat circular fitting that is used to connect pipes, valves, pumps, and other equipment to each other or to other components in a piping system. It is called a “plate” flange because it is essentially a flat piece of metal with bolt holes drilled around its circumference. The plate flange is typically bolted to another flange or component using bolts and nuts.

Plate flanges come in a variety of materials, such as stainless steel, carbon steel, and alloy steel, and can be designed to handle different pressures and temperatures depending on the specific application. They are often used in industrial settings where high pressure and temperature are present, such as in oil and gas processing, chemical plants, and power generation facilities. Plate flanges are also commonly used in plumbing and HVAC systems for residential and commercial buildings.

Specifications Material Grades Dimensions Chart Weight Chart Pressure Ratings Applications

ASTM A105 Plate Flange, Carbon Steel Plate Flanges, Galvanized Plate Flange, Inconel 600 Plate Flange, MSS SP-44 Plate Flange, Titanium Plate Flanges, EN 1092-2 PN16 Plate Flanges Exporter, Plate Flanges NPS, Sch 80 Schedule 40 Stainless Steel 304, 304L, 316, 316L, and 904L Plate Flange, Series A & B Plate Flanges, DIN 86029 PN10 Plate Flange, Plate Forged Flange, Loose Plate Flange Type 02, MS Plate Flange at the Lowest Prices.

Plate Flange Specifications

Size Range

1/2″ (15 NB) to 48″ (1200NB)

Class / Pressure Rating

150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.

Standards / Dimensions

ANSI/ASME B16.5, B16.47 Series A & B, B16.48, JIS B2220, BS 4504, BS 10, BS1560-3.1, EN-1092, DIN, AS, GOST, MSS SP-44, ISO 70051, API7S-15, API7S-43, API605, AWWA, DIN

Connection Type

Ring Joint Flange (RTJ), Flat Face Flange (FF), Raised Face Flange (RF), Male and Female Flange (M & F), Lap Joint Flange, Large and Small Tongue-and-Groove Flange (T & G)

Material Standards

ASTM A105, ASTM A350, ASTM A182, ASTM A216, ASTM A352, ASTM A217, ASTM A515, ASTM A516, ASTM A203, A204, ASTM A387, ASTM A240, ASTM A694 Plate Flange

Plate Flange Materials & Grades

ASTM A182 Plate Flange
Stainless Steel 304, 304L, 316, 316L, 316H, 316Ti, 310, 310S, 317, 317L, 321, 347, 347H, 904L, SMO 254/6Mo, Duplex Steel-S31803/S32205, Super Duplex-S32750/S32760 F51, F52, F53, F54, F55, F57, F59, F60, F61, Alloy Steel F1, F5, F9, F11, F12, F22, F91

ASTM B564 Plate Flange
Incoloy 800, 800H, 800HT, 825, 925, Inconel 600, 601, 625, 718, 783, 690, X750, Nickel 200, 201, 205, 205LC, Hastelloy C276, C22, C4, C2000, B2, B3, X, Monel 400, 500

ASTM A105 / A105N / A350 LF2 / A694 Plate Flange
Carbon Steel F52, F56, F60, F65, F70, F80

ASTM B247 Plate Flange
Aluminium 7075, 5086, 6082, 3003, 5083, 6061, 1100

ASTM B61 / B62 / B151 / B152 Plate Flange
Copper Nickel 90/10 (C70600 ), 70/30 (C71500), UNS C71640

ASTM B381 Plate Flange
Titanium Grade 1, Grade 2, Grade 3, Grade 4, Grade 5, Grade 6, Grade 7, Grade 9, Grade 12

Find the largest ready stock of Plate Flange, ASME B16.47/ANSI B16.5 Plate Flange, Series A & B Plate Flange Manufacturers, EN 1092-1 Plate Flange, Class 300, 600, 900, 1500 Plate Flange Manufacturer, PN10 Plate Flange, Pn6, Pn10, Pn16, Pn25, Pn40, Plate Flange Pn40, Din 2633 Plate Flange, Asme B16.5 Class 300, Plate Flange, ANSI B16.48 Class 150 Plate Flange, ANSI B16.5 Class 150 BS-4504 Plate Flange, ANSI 16.5 Plate Flange in Mumbai, India.

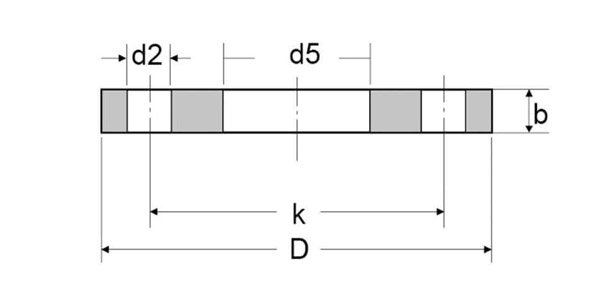

ANSI/ASME B16.5 Plate Flange Class 150 Dimensions

ANSI/ASME/ASA B16.48 Plate Flanges Class 150 Dimensions

NPS	D	b	g	m	J	k	Holes	l	Kg.
1/2″	88.9	11.1	34.9	30.2	22.3	60.3	4	15.9	0.4
3/4″	98.4	12.7	42.9	38.1	27.7	69.8	4	15.9	0.7
1″	107.9	14.3	50.8	49.2	34.5	79.4	4	15.9	0.8
1 1/4″	117.5	15.9	63.5	58.8	43.2	88.9	4	15.9	1.1
1 1/2″	127	17.5	73	65.1	49.5	98.4	4	15.9	1.4
2″	152.4	19	92.1	77.8	62	120.6	4	19	2.2
2 1/2″	177.8	22.2	104.8	90.5	74.7	139.7	4	19	3.6
3″	190.5	23.8	127	107.9	90.7	152.4	4	19	4.1
3 1/2″	215.9	23.8	139.7	122.2	103.4	177.8	8	19	5.2
4″	228.6	23.8	157.2	134.9	116.1	190.5	8	19	5.6
5″	254	23.8	185.7	163.6	143.8	215.9	8	22.2	6.3
6″	279.4	25.4	215.9	192.1	170.7	241.3	8	22.2	7.5
8″	342.9	28.6	269.9	246.1	221.5	298.4	8	22.2	12.6
10″	406.4	30.2	323.8	304.8	276.3	361.9	12	25.4	18.5
12″	482.6	31.7	381	365.1	327.1	431.8	12	25.5	28
14″	533.4	34.9	412.7	400	359.1	476.2	12	28.6	36
16″	596.9	36.5	469.9	457.2	410.5	539.7	16	28.6	46
18″	635	39.7	533.4	504.8	461.8	577.8	16	31.7	50
20″	698.5	42.9	584.2	558.8	513.1	635	20	31.7	64
22″	749.3	46	641.2	609.6	564.4	692.1	20	34.9	72
24″	812.8	47.6	692.1	663.6	615.9	749.3	20	34.9	89

ANSI/ASME B16.5 Plate Flange Class 300 Dimensions

NPS	D	b	g	m	J	k	Holes	l	Kg.
1/2″	95.6	14.3	34.9	38.1	22.3	66.7	4	15.9	0.7
3/4″	117.5	15.9	42.9	47.6	27.7	82.5	4	19	1.1
1″	123.8	17.5	50.8	54	34.5	88.9	4	19	1.4
1 1/4″	133.3	19	63.5	63.5	43.2	98.4	4	19	1.8
1 1/2″	155.6	20.6	73	69.8	49.5	114.3	4	22.2	2.6
2″	165.1	22.2	92.1	84.1	62	127	8	19	3.4
2 1/2″	190.5	25.4	104.8	100	74.7	149.2	8	22.2	4.4
3″	209.5	28.6	127	117.5	90.7	168.3	8	22.2	6.1
3 1/2″	228.6	30.2	139.7	133.3	103.4	184.1	8	22.2	7.5
4″	254	31.7	157.2	146	116.1	200	8	22.2	10.1
5″	279.4	34.9	185.7	177.8	143.8	234.9	8	22.2	12.5
6″	317.5	36.5	215.9	206.4	170.7	269.9	12	22.2	14.1
8″	381	41.3	269.9	260.3	221.5	330.2	12	25.4	24.8
10″	444.5	47.6	323.8	320.7	276.3	387.3	16	28.6	37.1
12″	520.7	50.8	381	374.6	327.1	450.8	16	31.7	50
14″	584.2	54	412.7	425.4	359.1	514.3	20	31.7	70
16″	647.7	57.1	469.9	482.6	410.5	571.5	20	34.9	90
18″	711.2	60.3	533.4	533.4	461.8	628.6	24	34.9	112
20″	774.7	63.5	584.2	584.2	513.1	685.8	24	34.9	133
22″	838.2	66.7	641.2	641.2	564.4	742.9	24	41.3	197
24″	914.4	69.8	692.1	701.7	615.9	812.8	24	41.3	208

ANSI/ASME B16.5 Plate Flange Class 600 Dimensions

NPS	D	b	g	m	J	k	Holes	l	Kg.
1/2″	95.2	14.3	34.9	38.1	22.3	66.7	4	15.9	0.8
3/4″	117.5	15.9	42.9	47.6	27.7	82.5	4	19	1.4
1″	123.8	17.5	50.8	54	34.5	88.9	4	19	1.6
1 1/4″	133.3	20.6	63.5	63.5	43.2	98.4	4	19	2.1
1 1/2″	155.6	22.2	73	69.8	49.5	114.3	4	22.2	3.1
2″	165.1	25.4	92.1	84.1	62	127	8	19	3.7
2 1/2″	190.5	28.6	104.8	100	74.7	149.2	8	22.2	5.4
3″	209.5	31.7	127	117.5	90.7	168.3	8	22.2	7.3
3 1/2″	228.6	34.9	139.7	133.3	103.4	184.1	8	25.4	8.9
4″	273	38.1	157.2	152.4	116.1	215.9	8	25.4	11.8
5″	330.2	44.4	185.7	188.9	143.8	266.7	8	28.6	24.5
6″	355.6	47.6	215.9	222.2	170.7	292.1	12	28.6	29.5
8″	419.1	55.6	269.9	273	221.5	349.2	12	31.7	43
10″	508	63.5	323.8	342.8	276.3	431.8	16	34.9	70
12″	558.8	66.7	381	400	327.1	488.9	20	34.9	86
14″	603.2	69.8	412.7	431.8	359.1	527	20	38.1	100
16″	685.8	76.2	469.9	495.3	410.5	603.2	20	41.3	142
18″	742.9	82.5	533.4	546.1	461.8	654	20	44.4	175
20″	812.8	88.9	584.2	609.6	513.1	723.9	24	44.4	232
22″	869.9	95.2	641.2	666.7	564.4	777.9	24	47.6	292
24″	939.8	101.6	692.1	717.5	615.9	838.2	24	50.8	330

ANSI/ASME B16.47 Plate Flange Weight Chart

Nominal Pipe Size	Diameter of Pipe		Flange Dimension			Nuts & Bolts			Approx. Flange Weight
Nominal Pipe Size	Diameter of Pipe		Flange I.D	Flange Dia	Thk of Flange	Dia of Bolt Circle	No. of Holes	Dia of Bolt Holes	Approx. Flange Weight
DN	ISO	DIN	d5	D	b	k		d2	KG /PCS
10	–	14	14.5	90	14	60	4	14	0.61
10	17.2	–	17.7	90	14	60	4	14	0.6
15	–	20	21	95	14	65	4	14	0.67
15	21.3	–	22	95	14	65	4	14	0.67
20	–	25	26	105	16	75	4	14	0.94
20	26.9	–	27.6	105	16	75	4	14	0.94
25	–	30	31	115	16	85	4	14	1.13
25	33.7	–	34.4	115	16	85	4	14	1.11
32	–	38	39	140	16	100	4	18	1.66
32	42.4	–	43.1	140	16	100	4	18	1.62
40	–	44.5	45.5	150	16	110	4	18	1.89
40	48.3	–	49	150	16	110	4	18	1.85
50	–	57	58.1	165	18	125	4	18	2.5
50	60.3	–	61.1	165	18	125	4	18	2.46
65	76.1	–	77.1	185	18	145	4	18	2.99
80	88.9	–	90.3	200	20	160	8	18	3.61
100	–	108	109.6	220	20	180	8	18	4.17
100	114.3	–	115.9	220	20	180	8	18	3.99
125	–	133	134.8	250	22	210	8	18	5.66
125	139.7	–	141.6	250	22	210	8	18	5.41
150	–	159	161.1	285	22	240	8	22	6.97
150	168.3	–	170.5	285	22	240	8	22	6.55
175	193.7	–	196.1	315	24	270	8	22	8.42
200	219.1	–	221.8	340	24	295	8	22	9.28
250	–	267	270.2	395	26	350	12	22	12.36
250	273	–	276.2	395	26	350	12	22	11.85
300	323.9	–	327.6	445	26	400	12	22	13.61
350	355.6	–	359.7	505	28	460	16	22	20.35
350	–	368	372.2	505	28	460	16	22	18.77
400	406.4	–	411	565	32	515	18	26	27.52
400	–	419	423.7	565	32	515	18	26	35.43
450	457	–	462.3	615	38	565	20	26	35.11
500	508	–	613.6	670	38	620	20	26	40.2
600	610	–	615.5	780	40	725	20	26	51.87

ANSI/ASME B16.5 Plate Flange Pressure Ratings

Flanges pressure rating in psig for Plate Flange ASME
Temperature (F°)	150#	300#	400#	600#	900#	1500#	2500#
-20 to 100	285	740	985	1480	2220	3705	6170
200	260	680	905	1360	2035	3395	5655
300	230	655	870	1310	1965	3270	5450
400	200	635	845	1265	1900	3170	5280
500	170	605	805	1205	1810	3015	5025
600	140	570	755	1135	1705	2840	4730
650	125	550	730	1100	1650	2745	4575
700	110	530	710	1060	1590	2655	4425
750	95	505	675	1015	1520	2535	4230
800	80	410	550	825	1235	2055	3430
850	65	320	425	640	955	1595	2655
900	50	230	305	460	690	1150	1915
950	35	135	185	275	410	685	1145
1000	20	85	115	170	255	430	715

Best quality Plate Flanges, Plate Weight 150# Flanges, Class 900 Plate Flange, Plate Class 2500 Flange, Plate Pn16 Flanges, Plate Pn10 Flange, Plate Pn40 Flange, Plate Class 900 Flange, Plate Pn 160 Flanges, Plate Pn 64 Flanges, Plate Dn150 Pn16 Flanges, Plate Flange Class 300, Plate Din 2527 Flange, ASME/ANSI B16.5 Plate Flange, 22mm wall plate flange, pn10 plate flange dimensions, plate flange din en 1092-1, pn16 plate flange dimensions, din 2501 pn10 plate flange, welding plate flange en 1092-1, plate flange en1092, en 1092-1 type 01 pn6 plate flange, flat plate flange in Mumbai, India.

Plate Flanges Applications
