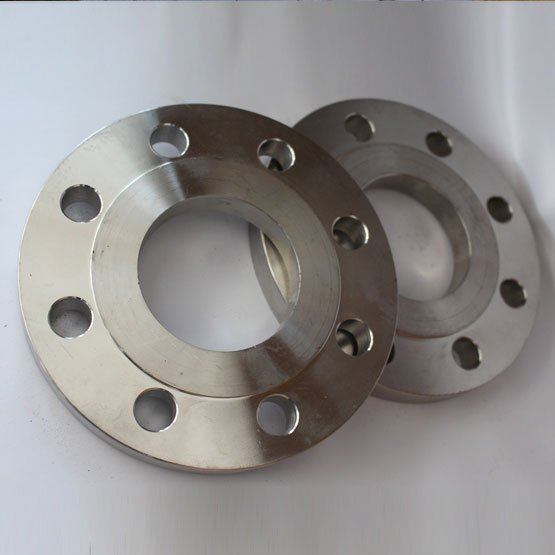

Titanium Grade 7 Flanges, ASTM B381 Titanium Gr 7 Flange

Name: Omaa Forged - Industrial Flanges and Round Bars
Rating: 5

ASTM B381 Ti Grade 7 Blind Flange, Titanium Gr 7 weld neck Flange, 3.7165 Socket Weld Flanges, UNS N56400 slip on Flanges Supplier, ANSI B16.5 Gr 7 Titanium Threaded Flanges, Ti Alloy Grade 7 Spectacle blind Flanges Manufacturer in India.

Titanium Grade 7 is a corrosion-resistant alloy that is often used in applications where resistance to saltwater, industrial chemicals, and acids is necessary. Flanges made from Titanium Grade 7 are particularly useful in harsh environments, such as offshore oil and gas platforms, chemical processing plants, and marine applications.

Titanium Grade 7 flanges have excellent corrosion resistance, even in highly oxidizing and acidic environments. They are also highly resistant to crevice corrosion, stress corrosion cracking, and pitting. These properties make them a good choice for critical applications where reliability is essential.

There are different types of flanges, including slip-on flanges, weld-neck flanges, blind flanges, and threaded flanges, among others. Titanium Grade 7 flanges are available in various sizes and pressure ratings to fit a range of applications.

When selecting Titanium Grade 7 flanges, it’s essential to consider factors such as the environment in which they will be used, the type of fluid or gas being conveyed, and the specific requirements of the application. It’s always best to consult with a qualified engineer or metallurgist to ensure that the chosen flange is suitable for the intended use.

ANSI/ASME B16.5 ASTM B381 Titanium Grade 7 Flanges Supplier

Specifications Material Grades Dimensions Weight Chart Pressure Chart Size Chart
Applications

Check Sizes And Dimensions Of ASTM B381 Grade 7 Titanium Forged Flanges, Suppliers of Ti Alloy Grade 7 Welding Neck Flange, Lap joint Flanges, Ready Stock of Grade 7 Titanium Socket Weld Flange, ISO Approved Titanium Alloy Gr 7 Blind Flanges, Titanium Alloy Gr 7 Spectacle Blind Flanges.

Titanium Grade 7 Flange Specifications

Size Range

1/2" (15 NB) to 48" (1200NB) DN10~DN5000

Class / Pressure Rating

150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

Standards / Dimensions

ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, BS, GOST, MSS SP-44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605

Connection Type

Ring Joint Flange (RTJ), Flat Face Flange (FF), Raised Face Flange (RF), Male and Female Flange (M & F), Lap Joint Flange, Large and Small Tongue-and-Groove Flange (T & G)

Material Standards

ASTM B381/ ASME SB381

ASTM B381 Titanium Grade 7 Flanges Equivalent Grade

STANDARD	WERKSTOFF NR.	UNS
Titanium Gr. 7	3.7165	N56400

ANSI B16.5 Titanium Gr 7 Flanges Chemical Composition

Grade	Ti	C	Fe	H	N	O	Al	V
Ti Grade 7	90 min	–	0.25 max	–	–	0.2 max	6 min	4 min

ASTM B381 Titanium Grade 7 Flanges Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Titanium Gr. 7	4.43 g/cm3	1632 °C (2970 °F)	Psi – 138000 , MPa – 950	Psi – 128000 , MPa – 880	14 %

Find the largest ready stock of Titanium Gr 7 Flanges, UNS N56400 Flanges Exporter, Check Availability of ASTM B381 Titanium Grade 7 Threaded Flanges, Grade 7 Titanium Flange Price List, Ti Alloy Grade 7 BLRF Flanges Supplier, Ti Grade 7 Reducing Flanges Stockist, ASME SB381 Spectacle Blind Flanges, ASME SB381 Titanium Grade 7 Slip On Flanges Dealer, Titanium Alloy Grade 7 Forged Flanges in Mumbai, India.

ASTM B381 Titanium Grade 7 Flanges Dimensions & Size

NPS (in.)	Titanium Gr 7 Flanges Dimensions
NPS (in.)	Dia. of Flange (in.)	No. of Bolts	Dia. of Bolts (in.)	Dia. of Bolt Holes (in.)	Bolt Circle (in.)
1/4	3-3/8	4	1/2	0.62	2-1/4
1/2	3-1/2	4	1/2	0.62	2-3/8
3/4	3-7/8	4	1/2	0.62	2-3/4
1	4-1/4	4	1/2	0.62	3-1/8
1-1/4	4-5/8	4	1/2	0.62	3-1/2
1-1/2	5	4	1/2	0.62	3-7/8
2	6	4	5/8	0.75	4-3/4
2-1/2	7	4	5/8	0.75	5-1/2
3	7-1/2	4	5/8	0.75	6
3-1/2	8-1/2	8	5/8	0.75	7
4	9	8	5/8	0.75	7-1/2
5	10	8	3/4	0.88	8-1/2
6	11	8	3/4	0.88	9-1/2
8	13-1/2	8	3/4	0.88	11-3/4
10	16	12	7/8	1	14-1/4
12	19	12	7/8	1	17
14	21	12	1	1.12	18-3/4
16	23-1/2	16	1	1.12	21-1/4
18	25	16	1-1/8	1.25	22-3/4
20	27-1/2	20	1-1/8	1.25	25
24	32	20	1-1/4	1.38	29-1/2

ASTM B381 Titanium Gr 7 Flanges Weight Chart

Standard	Class	Diameter	Bolt Circle Diameter	Number of Bolts	Bolt Size	Diameter of Bolt Hole
15mm (1/2″) Titanium Grade 7 Flange Weight Chart
ANSI B16.5 Flanges	ANSI 150 Flanges	89	60	4	13	16
	ANSI 300 Flanges	95	67	4	13	16
	ANSI 600 Flanges	95	67	4	13	16
	ANSI 900 Flanges	121	83	4	19	22
	ANSI 1500 Flanges	121	83	4	19	22
AS4087 Flanges	PN14 Flanges	95	67	4	M12	14
AS 2129 Flange	Table C Flanges	95	67	4	13	14
	Table D Flanges	95	67	4	13	14
	Table E Flanges	95	67	4	13	14
	Table F Flanges	95	67	4	13	14
	Table H Flanges	114	83	4	16	17
	Table J Flanges	114	83	4	16	17
ISO 7005 (DIN) Flange	PN6 Flanges	80	55	4	M10	11
	PN10 Flanges	95	65	4	M12	14
	PN16 Flanges	95	65	4	M12	14
	PN20 Flanges	90	60.5	4	M14	16
	PN25 Flanges	95	65	4	M12	14
	PN40 Flanges	95	65	4	M12	14

Titanium Grade 7 Flange Pressure Ratings

NPS (Nominal Pipe Size)	SORF (Slip On)	NPT (Threaded)	SWRF (Socket Weld)	Loose (Lap Joint)	BLRF (Blind)	WRNR (Weld Neck)
½	1	1	2	1	2	2
¾	2	2	2	2	2	2
1	2	2	2	2	2	3
1¼	3	3	3	3	3	3
1½	3	3	3	3	4	4
2	5	5	5	5	5	6
2½	8	8	8	8	7	10
3	9	9	9	9	9	11.5
3½	11	12	11	11	13	12
4	13	13	13	13	17	16.5
5	15	15	15	15	20	21
6	19	19	19	19	27	26
8	30	30	30	30	47	42
10	43	43	43	43	70	54
12	64	64	64	64	123	88
14	90	90	90	105	140	114
16	106	98	98	140	180	140
18	130	130	130	160	220	165
20	165	165	165	195	285	197
22	185	185	185	245	355	225
24	220	220	220	275	430	268

Titanium Grade 7 Flanges Dimensional Size Chart

Normal Sizes In inch	Dimension	Titanium Gr 7 Flanges Dimensional Sizes 1/2 inch. to 2 1/2 inch.
		Class 125 Class 150		Class 300		Class 400		Class 600		Class 900		Class 1500		Class 2500
		inch.	mm	inch.	millimeter	inch.	mm	inch.	mm	inch.	mm	inch.	mm	inch		mm
1/2	A	3 1/2	88.9	3 3/4	95.2	3 3/4	95.2	3 3/4	95.2	4 3/4	121	4 3/4	121	5 1/4	133.4
	b	7/16	11.1	9/16	14.3	9/16	14.3	9/16	14.3	7/8	22.2	7/8	22.2	1 3/16	30.2
	D2	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9
	D1	2 3/8	60.3	2 5/8	66.7	2 5/8	66.7	2 5/8	66.7	3 1/4	82.6	3 1/4	82.6	3 1/2	88.9
	n	4	4	4	4	4	4	4	4	4	4	4	–	4	44
	d	5/8	15.9	5/8	15.9	5/8	15.9	5/8	15.9	7/8	22.2	7/8	22.2	7/8	22.2
3/4	A	3 7/8	98.4	4 5/8	117.5	4 5/8	117.5	4 5/8	117.5	5 1/8	130	5 1/8	130	5 1/2	139.7
	b	1/2	12.7	5/8	15.9	5/8	15.9	5/8	15.9	1	25.4	1	25.4	1 1/4	31.8
	D2	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9
	D1	2 3/4	69.8	3 1/4	82.5	3 1/4	82.5	3 1/4	82.5	3 1/2	88.9	3 1/2	88.9	3 3/4	95.2
	n	4	4	4	4	4	4	4	4	4	4	4	–	4	44
	d	5/8	15.9	3/4	19	3/4	19	3/4	19	7/8	22.2	7/8	22.2	7/8	22.2
1	A	4 1/4	108	4 7/8	123.8	4 7/8	123.8	4 7/8	123.8	5 7/8	149.2	5 7/8	149.2	6 1/4	159
	b	9/16	14.3	11/16	17.5	11/16	17.5	11/16	17.5	1 1/8	28.6	1 1/8	28.6	1 3/8	34.9
	D2	2	50.8	2	50.8	2	50.8	2	50.8	2	50.8	2	50.8	2	50.8
	D1	3 1/8	79.4	3 1/2	88.9	3 1/2	88.9	3 1/2	88.9	4	102	4	102	4 1/4	108
	n	4	4	4	4	4	4	4	4	4	4	4	4	4	4
	d	5/8	15.9	3/4	19	3/4	19	3/4	19	1	25.4	1	25.4	1	25.4
1 1/4	A	4 5/8	117.5	5 1/4	133.4	5 1/4	133.4	5 1/4	133.4	6 1/4	159	6 1/4	159	7 1/4	184.2
	b	5/8	15.9	3/4	19	13/16	20.6	13/16	20.6	1 1/8	28.6	1 1/8	28.6	1 1/2	38.1
	D2	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5
	D1	3 1/2	88.9	3 7/8	98.4	3 7/8	98.4	3 7/8	98.4	4 3/8	111	4 3/8	111	5 1/8	130
	n	4	4	4	4	4	4	4	4	4	4	4	4	4	4
	d	5/8	15.9	3/4	19	3/4	19	3/4	19	1	25.4	1	25.4	1 1/8	28.6
1 1/2	A	5	127	6 1/8	155.6	6 1/8	155.6	6 1/8	155.6	7	177.8	7	177.8	8	203
	b	11/16	17.5	13/16	20.6	7/8	22.2	7/8	22.2	1 1/4	31.8	1 1/4	31.8	1 3/4	44.5
	D2	2 7/8	73 98	2 7/8	73	2 7/8	73	2 7/8	73	2 7/8	73	2 7/8	73	2 7/8	73
	D1	3 7/8	4	4 1/2	114	4 1/2	114	4 1/2	114	4 7/8	124	4 7/8	124	5 3/4	146
	n	4	4	4	4	4	4	4	4	4	4	4	4	4	4
	d	5/8	. 15.9	7/8	22.2	7/8	22.2	7/8	22.2	1 1/8	28.6	1 1/8	28.6	1 1/4	31.8
2	A	6	152.4	6 1/2	165.1	6 1/2	165.1	6 1/2	165.1	8 1/2	215.9	8 1/2	215.9	9 1/4	234.9
	b	3/4	19	7/8	22.2	1	25.4	1	25.4	1 1/2	38.1	1 1/2	38.1	2	50.8
	D2	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1
	D1	4 3/4	121	5	127	5	127	5	127	6 1/2	165.1	6 1/2	165.1	6 3/4	171
	n	4	4	8	8	8	8	8	8	8	8	8	8	8	8
	d	3/4	19	3/4	19	3/4	19	3/4	19	1	25.4	1	25.4	1 1/8	28.6
2 1/2	A	7	177.8	7 1/2	190.5	7 1/2	190.5	7 1/2	190.5	9 5/8	244	9 5/8	244	10 1/2	266.7
	b	7/8	22.2	1	25.4	1 1/8	28.6	1 1/8	28.6	1 5/8	41.3	1 5/8	41.3	2 1/4	57.2
	D2	4 1/8	104.8	4 1/8	104.8	4 1/8	104.8	4 1/8	104.8	4 1/8	105	4 1/8	105	4 1/8	105
	D1	5 1/2	139.7	5 7/8	149.2	5 7/8	149.2	5 7/8	149.2	7 1/2	190.5	7 1/2	190.5	7 3/4	197
	n	4	4	8	8	8	8	8	8	8	8	8	8	8	8
	d	3/4	19	7/8	22.2	7/8	22.2	7/8	22.2	1 1/8	28.6	1 1/8	28.6	1 1/4	31.8

Grade 7 Titanium Flange Dimensional Tolerance

Outside Diameter	When O.D. is 24″ or less	±1.6mm﹡
Inside Diameter	10″ and smaller	±0.8mm
	12″ thru 18″	±1.6mm
	20″ and larger	+3.2mm, -1.6mm
Outside Diameter of hub	5″ and smaller	+2.4mm, -0.8mm﹡
Outside Diameter of hub	6″ and larger	+4.0mm, -0.8mm
Diameter of contact face	1/16″ rasied face tongue and groove male, female	±0.8mm
Diameter of contact face	1/4″ rasied face tongue and groove male, female	±0.4mm
Diameter of hub at base	when hub base is 24″ or smaller	±1.6mm﹡
Diameter of hub at point of welding	5″ and smaller	+2.4mm, -0.8mm
Diameter of hub at point of welding	6″ and larger	+4.0mm, -0.8mm
Drilling	Bolt circle	±1.6mm
	Bolt hole spacing	±0.8mm
	Eccentricity of bolt circle with respect to facing	2 1/2″ and smaller: 0.8mm, max﹡
	Eccentricity of bolt circle with respect to bore	3″ and larger: 1.6mm, max﹡
Thickness	18″ and smaller	+3.2mm, -0mm
Thickness	20″ and larger	+4.8mm, -0mm
Length of thru hub	10″ and smaller	±1.6mm
Length of thru hub	12″ and larger	±3.2mm

Best quality Titanium Grade 7 Flanges, UNS N56400 Spectacle Blind Flange, View Specification Of ASME B16.5 Grade 7 Titanium Orifice Flange, ASTM B381 Titanium Gr 7 Flanges Facing Type & Finish, Ti Alloy Grade 7 Nipoflange, Ti Grade 7 RTJ Flange, Titanium Grade 7 Plate Flange Flat Face, Ti Grade 7 Square Flange, Titanium Grade 7 Flanges Price, MSS SP-44 Titanium Grade 7 Flange, Titanium Grade 7 Class 150 Flanges Raised Face, Titanium Gr 7 Weldoflange, WERKSTOFF NR. 3.7165 Groove Flange, Titanium Grade 7 Expander Flanges at Best Price.
