SAE J518 flanges are a type of flange connection used in hydraulic systems. They are also known as split flanges or code 61/62 flanges. SAE J518 flanges are designed to provide a secure and leak-free connection between two hydraulic components, such as hoses, pipes, valves, and pumps.
SAE J518 flanges consist of two halves, a flange head and a weld socket, that are clamped together using bolts and nuts. The flange head has a flat surface with bolt holes arranged in a circular pattern, while the weld socket has a curved surface that matches the shape of the flange head. The two halves are designed to fit together with a seal ring or o-ring in between, which creates a tight seal to prevent leaks.
SAE J518 flanges come in two sizes, code 61 and code 62, which differ in their working pressure ratings. Code 61 flanges are rated for working pressures up to 3000 psi, while code 62 flanges are rated for working pressures up to 6000 psi.
SAE J518 flanges are widely used in hydraulic systems, particularly in heavy machinery and equipment, such as construction and mining equipment, agricultural machinery, and industrial machinery. They offer a reliable and easy-to-assemble connection that can withstand high pressures and resist leakage.
Ready Stock of SAE J518 Socket Weld Flange, Check Sizes And Dimensions Of ISO 6162 Forged Flanges, Suppliers of SAE J518 Welding Neck Flange, SAE J518 Code 62 Ring Type Joint Orifice Flange, SAE J518 Blind Flanges.
SAE J518 Flange Specifications
Size Range
1/2" (15 NB) to 48" (1200NB) DN10~DN5000
Class / Pressure Rating
150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Standards / Dimensions
ANSI/ASME B16.5, B16.36, B16.48, BS4504, BS 10, EN-1092, DIN, BS, GOST, MSS SP-44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605
Connection Type
Ring Joint Flange (RTJ), Flat Face Flange (FF), Raised Face Flange (RF), Male and Female Flange (M & F), Lap Joint Flange, Large and Small Tongue-and-Groove Flange (T & G)
ISO 6162 Flanges Dimensions
Iso 6162 Split Flange Dimensions | Sae J518 Code 61 Flange Dimensions |
Sae J518 Code 62 Flange Dimensions |
Find the largest ready stock of SAE J518 Flanges, SAE J518 Code 61 RF Flanges Supplier, Check Availability of ISO 6162 Threaded Flanges, SAE J518 Code 62 Slip On Flanges Dealer, SAE J518 Reducing Flanges Stockist, SAE J518 Flange Price List, SAE J518 Forged Flanges in Mumbai, India.

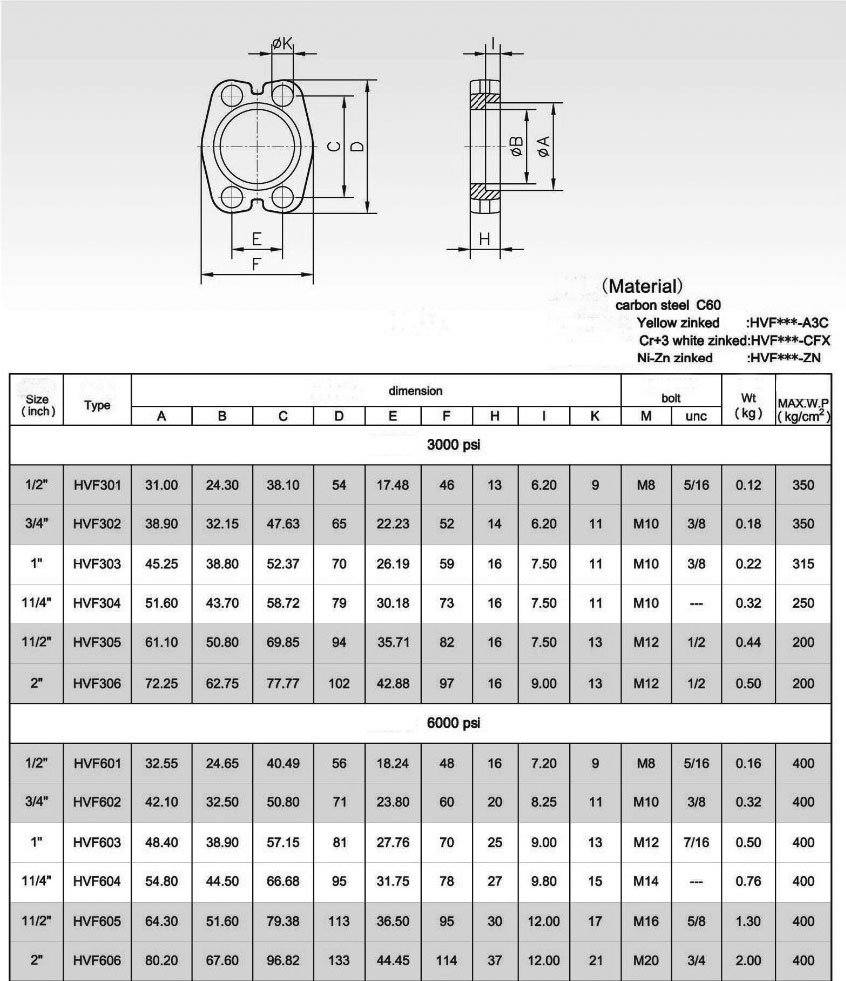

SAE J518 Code 61 Flanges Dimensions Schedule
Normal Pipe Size Size Of Flanges | Dash Size | BØ | T | F | G | PORT THREAD & BOLT LENGTH | |||||||
PORT | LENGTH Of BOLT | PORT | BOLT | ||||||||||
inches | millimeter | inches | millimeter | inches | millimeter | inches | millimeter | inches | UNC | inches | METRIC | millimeter | |
CODE 61 | |||||||||||||
1/2 | -08 | 30,2 | 1.19 | 6,73 | 0.265 | 17,5 | 0.69 | 38,1 | 1.50 | 5/16 – 18 | 1.1/4 | M8 x 1,25 | 35 |
*5/8 | -10 | 34,0 | 1.34 | 6,73 | 0.265 | 19,8 | 0.78 | 42,9 | 1.69 | 5/16 – 18 | M8 x 1,25 | ||
3/4 | -12 | 38,1 | 1.50 | 6,73 | 0.265 | 22,2 | 0.88 | 47,6 | 1.88 | 3/8 – 16 | 1.1/4 | M10 x 1,5 | 35 |
1 | -16 | 44,5 | 1.75 | 8,00 | 0.315 | 26,2 | 1.03 | 52,4 | 2.06 | 3/8 – 16 | 1.1/4 | M10 x 1,5 | 35 |
1.1/4 | -20 | 50,8 | 2.00 | 8,00 | 0.315 | 30,2 | 1.19 | 58,7 | 2.31 | 7/16 – 14 | 1.1/2 | M10 x 1,5 | 40 |
1.1/2 | -24 | 60,3 | 2.38 | 8,00 | 0.315 | 35,7 | 1.41 | 69,8 | 2.75 | 1/2 – 13 | 1.1/2 | M12 x 1,75 | 45 |
1.1/2 | -24 | 60,3 | 2.38 | 8,00 | 0.315 | 35,7 | 1.41 | 69,8 | 2.75 | 1/2 – 13 | 1.1/2 | M12 x 1,75 | 45 |
2 | -32 | 71,4 | 2.81 | 9,53 | 0.375 | 42,9 | 1.69 | 77,8 | 3.06 | 1/2 – 13 | 1.1/2 | M12 x 1,75 | 45 |
2.1/2 | -40 | 84,1 | 3.31 | 9,53 | 0.375 | 50,8 | 2.00 | 88,9 | 3.50 | 1/2 – 13 | 1.3/4 | M12 x 1,75 | 45 |
3 | -48 | 101,6 | 4.00 | 9,53 | 0.375 | 61,9 | 2.44 | 106,4 | 4.19 | 5/8 – 11 | 1.3/4 | M16 x 2,0 | 45 |
CODE 62 | |||||||||||||
1/2 | -08 | 31,7 | 1.25 | 7,75 | 0.305 | 18,2 | 0.72 | 40,5 | 1.59 | 5/16 – 18 | 1.1/4 | M8 x 1,25 | 35 |
3/4 | -12 | 41,3 | 1.63 | 8,76 | 0.345 | 23,8 | 0.94 | 50,8 | 2.00 | 3/8 – 16 | 1.1/2 | M10 x 1,5 | 40 |
1 | -16 | 47,6 | 1.88 | 9,53 | 0.375 | 27,8 | 1.09 | 57,2 | 2.25 | 7/16 – 14 | 1.3/4 | M12 x 1,75 | 45 |
1.1/4 | -20 | 54,0 | 2.12 | 10,29 | 0.405 | 31,8 | 1.25 | 66,7 | 2.63 | 1/2 – 13 | 1.3/4 | M14 x 2,0 | 45 |
1.1/2 | -24 | 63,5 | 2.50 | 12,57 | 0.495 | 36,5 | 1.44 | 79,4 | 3.13 | 5/8 – 11 | 2.1/4 | M16 x 2,0 | 60 |
2 | -32 | 79,4 | 3.13 | 12,57 | 0.495 | 44,5 | 1.75 | 96,8 | 3.81 | 3/4 – 10 | 2.3/4 | M20 x 2,5 | 70 |
62C | |||||||||||||
3/4 | -12 | 41,3 | 1.63 | 14,20 | 0.559 | 23,8 | 0.94 | 50,8 | 2.00 | 3/8 – 16 | 1.3/4 | M10 x 1,5 | 45 |
1 | -16 | 47,6 | 1.88 | 14,20 | 0.599 | 27,8 | 1.09 | 57,2 | 2.25 | 7/16 – 14 | 1.3/4 | M12 x 1,75 | 45 |
1.1/4 | -20 | 54,0 | 2.12 | 14,20 | 0.599 | 31,8 | 1.25 | 66,7 | 2.63 | 1/2 – 13 | 2 | M14 x 2,0 | 50 |
Best quality SAE J518 Flanges, ISO 6162 Weldoflange, SAE J518 Flanges Facing Type & Finish, SAE J518 Nipoflange, SAE J518 Square Flange, View Specification Of SAE J518 Orifice Flange, SAE J518 RTJ Flange, SAE J518 Code 62 langes Raised Face, SAE J518 Code 61 Groove Flange, SAE J518 Flanges Price, SAE J518 Expander Flanges at Best Price.
SAE J518 Flanges Applications
- Petrochemical Industries
- Pharmaceutical Equipment
- Power Generation
- Heating Systems and Heat Exchanger
- Pulp and Paper Industry
- Mining Support
- Chemical Equipment
- Gas Processing
- Plumbing
- Nuclear Power Systems
- Condensers
- Sea Water Equipment
- Buildings and Bridges
- Industrial Water Lines
- Food Processing Industry
- Fire Protection Systems
- Off-Shore Oil Drilling Companies
