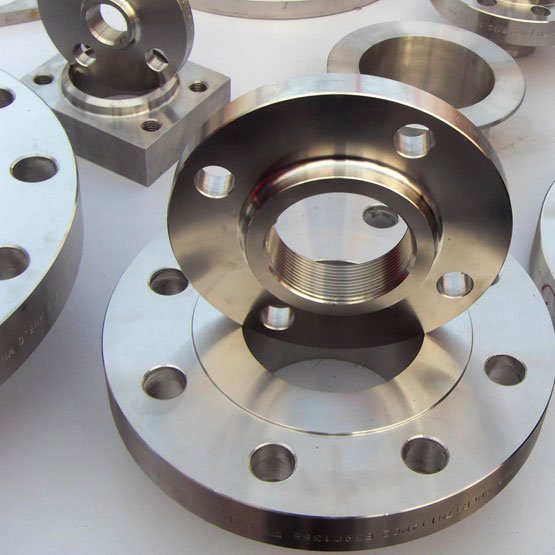

ASTM B247 Aluminium 3003 Flanges

H14 Aluminum 3003 Threaded Flanges, 3.0517 Socket Weld Flanges, ASTM B247 Aluminium Alloy 3003 Blind Flange, UNS A93003 slip on Flanges Supplier, Aluminium 3003 weld neck Flange, Aluminum Alloy 3003 Spectacle blind Flanges Manufacturer in India.

Alloy 3003 is a non-heat-treatable alloy of aluminum, which is commonly used in various applications due to its excellent corrosion resistance, formability, and weldability. A flange made from alloy 3003 would offer these properties along with the ability to withstand low temperatures.

Flanges are used in piping systems to connect sections of pipe and provide easy access for maintenance, cleaning, and inspection. Flanges come in various types, including slip-on, weld neck, threaded, and blind, among others.

If you are considering an alloy 3003 flange for your application, it is important to consider the specific requirements of your piping system and the operating conditions that the flange will be subjected to. This will help ensure that the flange you choose is compatible with your system and can provide the necessary performance and durability.

Additionally, it is important to ensure that the flange you choose meets applicable industry standards, such as those set by ASTM International or the American Society of Mechanical Engineers (ASME). These standards provide guidelines for the design, manufacture, and testing of flanges to ensure that they meet the necessary quality and safety requirements for their intended use.

ANSI/ASME B16.5 ASTM ASTM B247 Aluminium 3003 Flanges Supplier

Ready Stock of A93003 Aluminium Socket Weld Flange, Check Sizes And Dimensions Of ASTM B247 Forged Flanges, ISO Approved Aluminum Alloy 3003 Blind Flanges, Suppliers of 3003 Aluminium Alloy 3003 Welding Neck Flange, H14 Temper Aluminium 3003 Lap joint Flanges, Aluminum 3003 Spectacle Blind Flanges.

Aluminium 3003 Flange Specifications

Size Range

1/2" (15 NB) to 48" (1200NB) DN10~DN5000

Class / Pressure Rating

150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

Standards / Dimensions

ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, BS, GOST, MSS SP-44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605

Connection Type

Ring Joint Flange (RTJ), Flat Face Flange (FF), Raised Face Flange (RF), Male and Female Flange (M & F), Lap Joint Flange, Large and Small Tongue-and-Groove Flange (T & G)

Material Standards

ASTM B247/ ASME SB247

ASTM B247 Aluminium 3003 Flanges Equivalent Grade

European Standard OLD WNr UNS ISO USA (AA) GERMANY (DIN)
AW-AlCu4Mg1 AU4G1 3.0517 A93003 AlCu4Mg 3003 AlCuMg2

Aluminium 3003 Flanges Chemical Composition

Al Cu Fe Mn Other Total Si Zn
Remainder 0.05 to 0.20% 0.7% 1.0 to 1.5% 0.15% 0.6% 0.10%

ASTM B247 Aluminium 3003 Flanges Mechanical Properties

Properties Metric Imperial
Tensile strength 130 MPa 18855 psi
Yield strength 125 MPa 18130 psi
Shear strength 83 MPa 12039 psi
Fatigue strength 55 MPa 7977 psi
Elastic modulus 70-80 GPa 10153-11603 ksi
Poisson’s ratio 0.33 0.33
Elongation 10% 10%
Hardness 35 35

Find the largest ready stock of Aluminium 3003 Flanges, Aluminium Alloy 3003 BLRF Flanges Supplier, UNS A93003 Flanges Exporter, Aluminum 3003 Reducing Flanges Stockist, ASME SB247 Aluminium 3003 Slip On Flanges Dealer, Check Availability of ASTM B247 Aluminium 3003 Threaded Flanges, ASME SB247 Spectacle Blind Flanges, 3003 Aluminium Flange Price List, Aluminium Alloy 3003 Forged Flanges in Mumbai, India.

ASTM B247 Aluminium 3003 Flanges Dimensions & Size

NPS
(in.)
Aluminium 3003 Flanges Dimensions
Dia. of
Flange
(in.)
No.
of
Bolts
Dia. of
Bolts
(in.)
Dia. of
Bolt Holes
(in.)
Bolt
Circle
(in.)
1/43-3/841/20.622-1/4
1/23-1/241/20.622-3/8
3/43-7/841/20.622-3/4
14-1/441/20.623-1/8
1-1/44-5/841/20.623-1/2
1-1/2541/20.623-7/8
2645/80.754-3/4
2-1/2745/80.755-1/2
37-1/245/80.756
3-1/28-1/285/80.757
4985/80.757-1/2
51083/40.888-1/2
61183/40.889-1/2
813-1/283/40.8811-3/4
1016127/8114-1/4
1219127/8117
14211211.1218-3/4
1623-1/21611.1221-1/4
1825161-1/81.2522-3/4
2027-1/2201-1/81.2525
2432201-1/41.3829-1/2

ASTM B247 Aluminium 3003 Flanges Weight Chart

15mm (1/2″) Aluminium 3003 Flange Weight Chart
StandardClassDiameterBolt Circle DiameterNumber of BoltsBolt SizeDiameter of Bolt Hole
ANSI B16.5 FlangesANSI 150 Flanges896041316
ANSI 300 Flanges956741316
ANSI 600 Flanges956741316
ANSI 900 Flanges1218341922
ANSI 1500 Flanges1218341922
AS4087 FlangesPN14 Flanges95674M1214
AS 2129 FlangeTable C Flanges956741314
Table D Flanges956741314
Table E Flanges956741314
Table F Flanges956741314
Table H Flanges1148341617
Table J Flanges1148341617
ISO 7005 (DIN) FlangePN6 Flanges80554M1011
PN10 Flanges95654M1214
PN16 Flanges95654M1214
PN20 Flanges9060.54M1416
PN25 Flanges95654M1214
PN40 Flanges95654M1214

Aluminium 3003 Flange Pressure Ratings

NPS (Nominal Pipe Size) SORF (Slip On) NPT (Threaded) SWRF (Socket Weld) Loose (Lap Joint) BLRF (Blind) WRNR (Weld Neck)
½ 1 1 2 1 2 2
¾ 2 2 2 2 2 2
1 2 2 2 2 2 3
3 3 3 3 3 3
3 3 3 3 4 4
2 5 5 5 5 5 6
8 8 8 8 7 10
3 9 9 9 9 9 11.5
11 12 11 11 13 12
4 13 13 13 13 17 16.5
5 15 15 15 15 20 21
6 19 19 19 19 27 26
8 30 30 30 30 47 42
10 43 43 43 43 70 54
12 64 64 64 64 123 88
14 90 90 90 105 140 114
16 106 98 98 140 180 140
18 130 130 130 160 220 165
20 165 165 165 195 285 197
22 185 185 185 245 355 225
24 220 220 220 275 430 268

Aluminium 3003 Flanges Dimensional Size Chart

Normal Sizes In inchDimensionAluminium 3003 Flanges Dimensional Sizes 1/2 inch. to 2 1/2 inch.
Class 125
Class 150
Class 300Class 400Class 600Class 900Class 1500Class 2500
inch.mminch.millimeterinch.mminch.mminch.mminch.mminchmm
1/2A3 1/288.93 3/495.23 3/495.23 3/495.24 3/41214 3/41215 1/4133.4
b7/1611.19/1614.39/1614.39/1614.37/822.27/822.21 3/1630.2
D21 3/834.91 3/834.91 3/834.91 3/834.91 3/834.91 3/834.91 3/834.9
D12 3/860.32 5/866.72 5/866.72 5/866.73 1/482.63 1/482.63 1/288.9
n44444444444444
d5/815.95/815.95/815.95/815.97/822.27/822.27/822.2
3/4A3 7/898.44 5/8117.54 5/8117.54 5/8117.55 1/81305 1/81305 1/2139.7
b1/212.75/815.95/815.95/815.9125.4125.41 1/431.8
D21 11/1642.91 11/1642.91 11/1642.91 11/1642.91 11/1642.91 11/1642.91 11/1642.9
D12 3/469.83 1/482.53 1/482.53 1/482.53 1/288.93 1/288.93 3/495.2
n44444444444444
d5/815.93/4193/4193/4197/822.27/822.27/822.2
1A4 1/41084 7/8123.84 7/8123.84 7/8123.85 7/8149.25 7/8149.26 1/4159
b9/1614.311/1617.511/1617.511/1617.51 1/828.61 1/828.61 3/834.9
D2250.8250.8250.8250.8250.8250.8250.8
D13 1/879.43 1/288.93 1/288.93 1/288.9410241024 1/4108
n44444444444444
d5/815.93/4193/4193/419125.4125.4125.4
1 1/4A4 5/8117.55 1/4133.45 1/4133.45 1/4133.46 1/41596 1/41597 1/4184.2
b5/815.93/41913/1620.613/1620.61 1/828.61 1/828.61 1/238.1
D22 1/263.52 1/263.52 1/263.52 1/263.52 1/263.52 1/263.52 1/263.5
D13 1/288.93 7/898.43 7/898.43 7/898.44 3/81114 3/81115 1/8130
n44444444444444
d5/815.93/4193/4193/419125.4125.41 1/828.6
1 1/2A51276 1/8155.66 1/8155.66 1/8155.67177.87177.88203
b11/1617.513/1620.67/822.27/822.21 1/431.81 1/431.81 3/444.5
D22 7/873 982 7/8732 7/8732 7/8732 7/8732 7/8732 7/873
D13 7/844 1/21144 1/21144 1/21144 7/81244 7/81245 3/4146
n44444444444444
d5/8. 15.97/822.27/822.27/822.21 1/828.61 1/828.61 1/431.8
2A6152.46 1/2165.16 1/2165.16 1/2165.18 1/2215.98 1/2215.99 1/4234.9
b3/4197/822.2125.4125.41 1/238.11 1/238.1250.8
D23 5/892.13 5/892.13 5/892.13 5/892.13 5/892.13 5/892.13 5/892.1
D14 3/41215127512751276 1/2165.16 1/2165.16 3/4171
n44888888888888
d3/4193/4193/4193/419125.4125.41 1/828.6
2 1/2A7177.87 1/2190.57 1/2190.57 1/2190.59 5/82449 5/824410 1/2266.7
b7/822.2125.41 1/828.61 1/828.61 5/841.31 5/841.32 1/457.2
D24 1/8104.84 1/8104.84 1/8104.84 1/8104.84 1/81054 1/81054 1/8105
D15 1/2139.75 7/8149.25 7/8149.25 7/8149.27 1/2190.57 1/2190.57 3/4197
n44888888888888
d3/4197/822.27/822.27/822.21 1/828.61 1/828.61 1/431.8

Grade 3003 Aluminum Flange Dimensional Tolerance

Outside Diameter When O.D. is 24″ or less  ±1.6mm﹡
Inside Diameter 10″ and smaller  ±0.8mm
12″ thru 18″  ±1.6mm
20″ and larger  +3.2mm, -1.6mm
Outside Diameter of hub 5″ and smaller  +2.4mm, -0.8mm﹡
6″ and larger  +4.0mm, -0.8mm
Diameter of contact face 1/16″ rasied face tongue and groove male, female  ±0.8mm
1/4″ rasied face tongue and groove male, female  ±0.4mm
Diameter of hub at base when hub base is 24″ or smaller  ±1.6mm﹡
Diameter of hub at point of welding 5″ and smaller  +2.4mm, -0.8mm
6″ and larger  +4.0mm, -0.8mm
Drilling Bolt circle  ±1.6mm
Bolt hole spacing  ±0.8mm
Eccentricity of bolt circle with respect to facing 2 1/2″ and smaller: 0.8mm, max﹡
Eccentricity of bolt circle with respect to bore 3″ and larger: 1.6mm, max﹡
Thickness 18″ and smaller  +3.2mm, -0mm
20″ and larger  +4.8mm, -0mm
Length of thru hub 10″ and smaller  ±1.6mm
12″ and larger  ±3.2mm
