In the world of piping systems, pipe flanges are essential components that provide a reliable and flexible way to connect, disconnect, and maintain pipe sections. At OMAA Metal Sources, we specialize in manufacturing and supplying high-quality pipe flanges for various industrial applications including oil & gas, petrochemical, water treatment, power plants, and construction.
In this blog, we’ll explain what pipe flanges are, how they work, and why they are vital to industrial piping infrastructure.

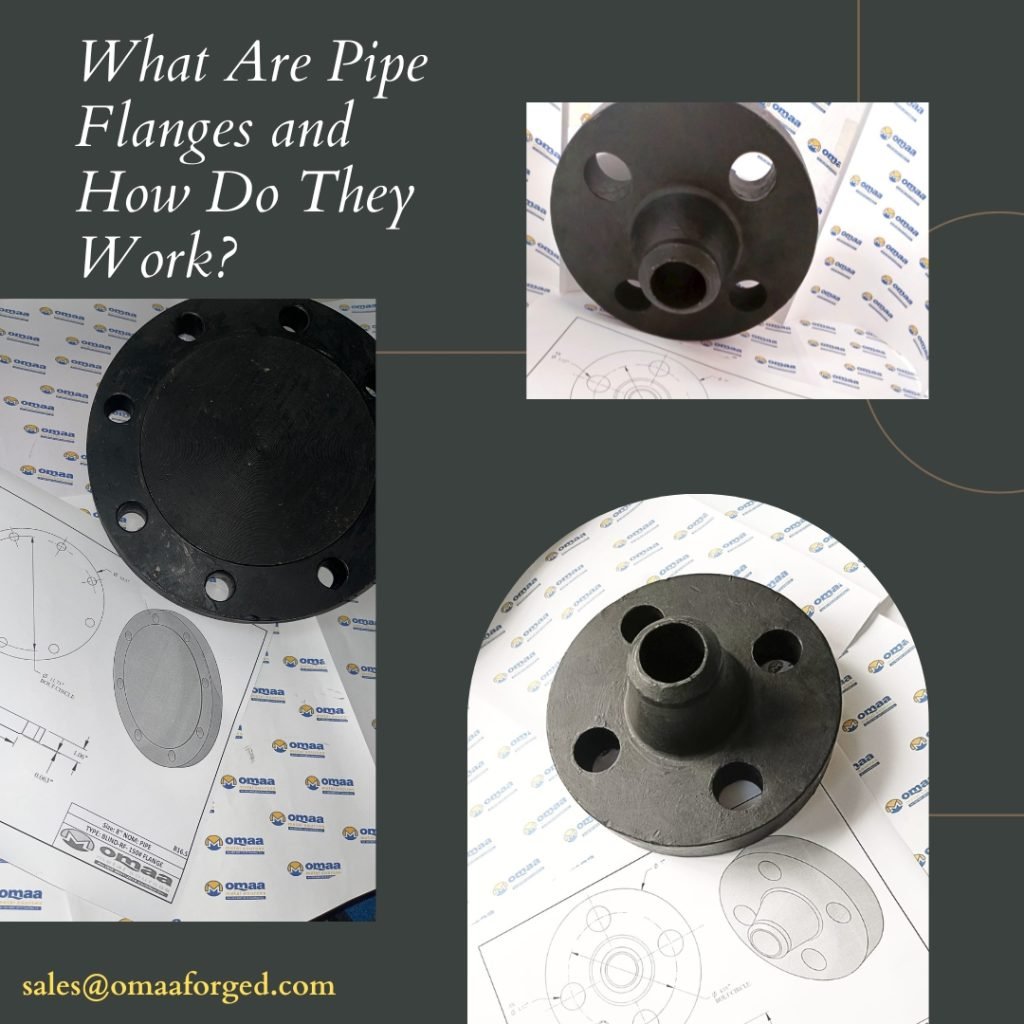

What is a Pipe Flange?
A pipe flange is a mechanical device used to connect pipes, valves, pumps, and other equipment in a piping system. It typically consists of a round disc with evenly spaced bolt holes. Flanges are usually welded or screwed to the ends of pipes and then bolted together with a gasket in between to ensure a leak-proof seal.
How Do Pipe Flanges Work?
Pipe flanges work by providing a stable connection point between two piping components. Here’s how the process works:
- Pipe Preparation:
The ends of two pipes are prepared for joining, typically by welding or threading.
- Flange Attachment:
A flange is welded (for types like weld neck or slip-on) or screwed (for threaded flanges) to each pipe end.
- Gasket Placement:
A gasket, typically made from rubber, PTFE, or graphite, is inserted between the two flanges to ensure a tight seal.
- Bolt Assembly:
The flanges are aligned and bolted together using high-tensile bolts and nuts.
- Sealing:
As the bolts are tightened, the gasket is compressed to form a leak-proof joint that can handle high pressure and temperature.
Types of Pipe Flanges Offered by OMAA Metal Sources
We offer a wide range of flange types to meet the specific demands of different piping systems:
| Flange Type | Description |
|---|---|
| Weld Neck Flange | Designed for high-pressure applications, welded at the neck for stress reduction. |
| Slip-On Flange | Easily installed by sliding over the pipe and welding at both ends. |
| Socket Weld Flange | Used for small-bore pipes and high-pressure systems. |
| Threaded Flange | Screws onto pipes without welding; ideal for low-pressure applications. |
| Blind Flange | Used to close the ends of piping systems or pressure vessels. |
| Lap Joint Flange | Used with stub ends; suitable for systems that require frequent dismantling. |
Material Grades We Offer
OMAA Metal Sources manufactures pipe flanges using a variety of material grades, including:
- Carbon Steel (ASTM A105, A350 LF2)
- Stainless Steel (ASTM A182 F304, F316)
- Alloy Steel (ASTM A182 F11, F22)
- Duplex & Super Duplex (UNS S31803, S32750)
- Nickel Alloys (Inconel, Monel, Hastelloy)
Why Pipe Flanges Are Essential
- Ease of Maintenance – Flanges allow quick disassembly for repairs or inspections.
- Flexibility – Systems can be easily modified or extended.
- Strength – Flanged joints are highly durable and pressure-resistant.
- Leak Prevention – When properly installed with gaskets, flanges provide a leak-proof connection.
Standards and Certifications
Our flanges are manufactured in compliance with international standards:
- ASME/ANSI B16.5
- DIN EN 1092-1
- BS 4504
- JIS B2220
- ISO 7005
- Custom dimensions as per client drawings
Applications of Pipe Flanges
- Oil & Gas Transmission Lines
- Petrochemical & Refinery Plants
- Water Treatment Facilities
- Power Generation Plants
- Shipbuilding and Marine Applications
- Firefighting and HVAC Systems
Conclusion:
At OMAA, we understand the importance of precision, durability, and compliance in piping systems. Our extensive range of pipe flanges is engineered to meet the toughest industrial challenges. Whether you’re building a high-pressure pipeline or need corrosion-resistant fittings, we have the expertise and inventory to support your project.
Contact us today for your pipe flange requirements or request a free quote.: sales@omaaforged.com | www.omaaforged.com
