Tongue and Groove Flange ASME B16.47 / ANSI B16.5

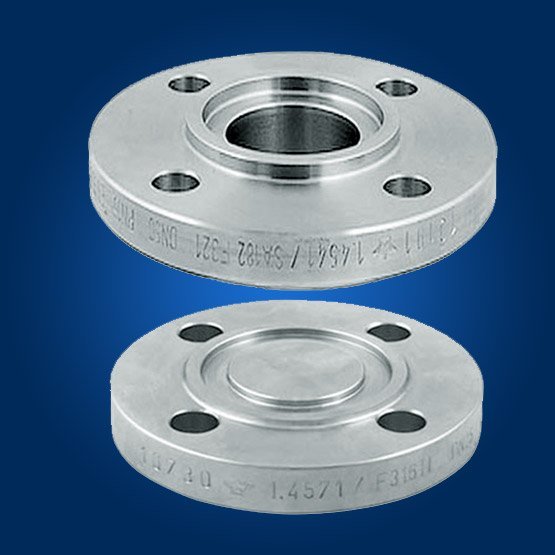

Tongue and Groove Flange ASME B16.47 / ANSI B16.5 Tongue and Groove Flange Manufacturers and Suppliers in India, ANSI B16.5 Tongue and Groove Flanges Dimensions, ASME B16.47 Weight Chart A tongue and groove flange is a type of mechanical joint used in piping systems that requires a tight seal. The flange consists of two mating pieces, typically made of metal, that fit together with a tongue-and-groove connection. The tongue and groove flange is designed to provide a secure and leak-proof connection between two pipes or fittings. The tongue is a raised portion of one flange that fits into a groove on the other flange, creating a tight seal. The groove is usually slightly wider than the tongue, allowing for some movement and adjustment during installation. This type of flange is commonly used in high-pressure applications, such as in chemical plants, oil refineries, and power generation facilities. Tongue and groove flanges can handle higher pressure and temperature than other types of flanges, and are typically used in applications where tight seals are essential to prevent leaks and ensure safety. Proper installation of tongue and groove flanges is critical to their effectiveness. The flanges must be aligned properly and tightened evenly to prevent distortion or damage to the seal. Gaskets are often used between the flanges to provide additional sealing and prevent leakage.SpecificationsMaterial GradesDimensionsPressure RatingsWall Thickness ChartApplications ASTM A105 Tongue and Groove Flange, Carbon Steel Tongue and Groove Flange, Galvanized Tongue and Groove Flange, Inconel 600 Tongue and Groove Flange, MS Tongue and Groove Flange, Titanium Tongue and Groove Flange, Tongue and Groove Flange NPS, Sch 80 Schedule 40 Stainless Steel 304, 304L, 316, 316L, and 904L Tongue and Groove Flange at the Lowest Prices. DETAILED INFORMATION Welcome to Omaa Metal Sources – Your Trusted Tongue and Groove Flange Solutions Provider Omaa…
