Paddle Blind Flange ASME ANSI B16.47 / B16.5

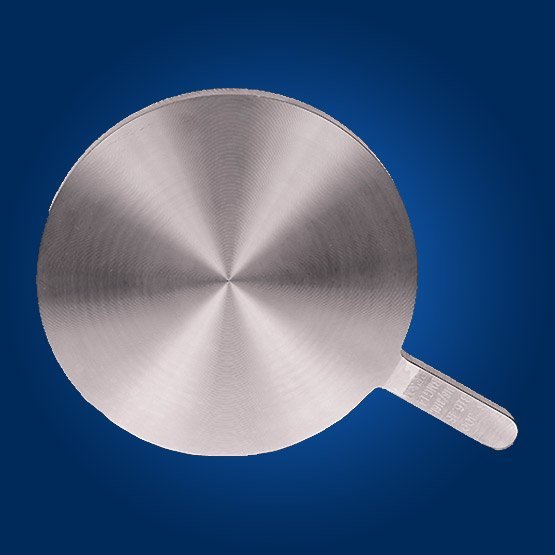

Paddle Blind Flange ASME B16.47 / ANSI B16.5 Paddle Blind Flange Manufacturers and Suppliers in India, ANSI B16.5 Paddle Blind Flange, ASME B16.47 Paddle Blind Flange Dimensions, MSS SP-44 Paddle Blind Flange, Paddle Blank Flange Raised Face & Flat Face A paddle blind flange is a type of flange used in piping systems to temporarily block the flow of fluid or gas. It consists of a solid disc with a handle or "paddle" attached to one side, and bolt holes on the other side for connecting it to a mating flange. Paddle blind flanges are typically used in maintenance or repair operations, or during construction when a section of piping needs to be isolated from the rest of the system. They can also be used as a temporary measure to isolate a leaking or damaged section of piping until it can be repaired or replaced. One advantage of paddle blind flanges is that they can be easily installed and removed without the need for special tools or equipment. They are also relatively inexpensive compared to other types of flanges, making them a cost-effective solution for temporary piping system modifications. However, it's important to note that paddle blind flanges should not be used as a permanent solution for isolating sections of piping. They are not designed to withstand the pressure and temperature requirements of a long-term piping system and may fail over time.SpecificationsMaterial GradesDimensions Chart Thickness Chart Applications ASTM A105 Paddle Blind Flange, Carbon Steel Paddle Blind Flanges, Galvanized Paddle Blind Flange, Inconel 600 Paddle Blind Flange, MSS SP-44 Paddle Blind Flange, Titanium Paddle Blind Flanges, EN 1092-2 PN16 Paddle Blind Flanges Exporter, Paddle Blind Flanges NPS, Sch 80 Schedule 40 Stainless Steel 304, 304L, 316, 316L, and 904L Paddle Blind Flange, Series A & B Paddle Blind Flanges, DIN 86029…
