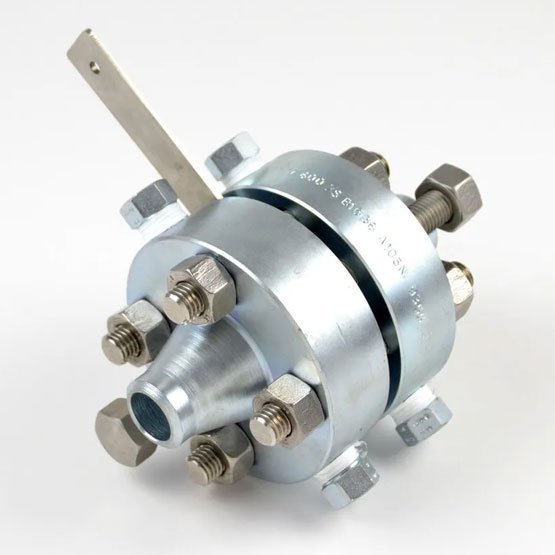

Orifice Flange ASME B16.36

Orifice Flange ASME B16.36 Orifice Flange Manufacturers and Suppliers in India, Carbon Steel Orifice Flange, ASME B16.36 Dimensions, ANSI B16.5 Weight Chart Orifice flanges are a type of flange that is designed to be used with an orifice plate in a piping system. The orifice plate is a thin metal plate that has a hole or orifice in the center. When inserted between two flanges in a pipeline, the orifice plate causes a pressure drop in the fluid flowing through the pipe. This pressure drop is used to measure the flow rate of the fluid. Orifice flanges have a concentric or eccentric opening that matches the size and location of the orifice plate. The orifice plate is inserted into the flange, and the flange is bolted onto the pipe, creating a tight and secure seal. The orifice plate can be easily removed for cleaning or replacement. Orifice flanges are commonly used in industries such as oil and gas, chemical processing, and power generation, where accurate measurement of fluid flow rates is critical. They are also used in industries such as water treatment and HVAC, where flow rate measurements are important for system efficiency. Orifice flanges are available in a wide range of materials, including carbon steel, stainless steel, and various alloys. The choice of material will depend on the specific application and the requirements for strength, corrosion resistance, and other properties.SpecificationsMaterial GradesDimensionsApplications ASTM A105 Corner Tap Orifice Flange, Carbon Steel Orifice Flange, Orifice Flange Unions, Inconel 600 Orifice Blind Flange, MS Orifice Weld Neck Flange, Slip On Orifice Flange, Socket Weld Orifice Flange, Sch 80 Schedule 40 Stainless Steel 304, 304L, 316, 316L, and 904L Threaded Orifice Flange at the Lowest Prices. DETAILED INFORMATION Welcome to Omaa Metal Sources – Your Trusted Provider of Orifice FlangesAt Omaa Metal Sources, we…
